Introducing the "Lonely Binary LR7843" MOSFET Control Module with Optoisolation - Unleash the Power!
The Lonely Binary LR7843 MOSFET Control Module is here to revolutionize your low-side switching applications. With a design built for moderate to higher current loads of up to 15A continuous, this module is a force to be reckoned with.
Powered by the LR7843 N-Channel MOSFET with an impressive ultra low Rds(on) resistance of just 3.3mΩ (typical), this module ensures optimal power delivery and efficiency for your projects. Get ready to experience top-notch performance like never before.
No more limitations! The LR7843 module supports a wide input control voltage range of 2.5V – 20V, making it independent of logic levels used for the drive signal. Thanks to the optoisolator on the input, compatibility with 3.3V and 5V logic signals is a breeze.
Safety first! While the module doesn't have a fly-back diode on the board, we've got you covered. Simply use an external fly-back diode when using the module with inductive loads to ensure the utmost safety and protection.
Say hello to the PC817 optoisolator included in the module. It provides essential electrical isolation between the high-powered MOSFET side and the logic signals used to control the module. Feel confident and in control every step of the way.

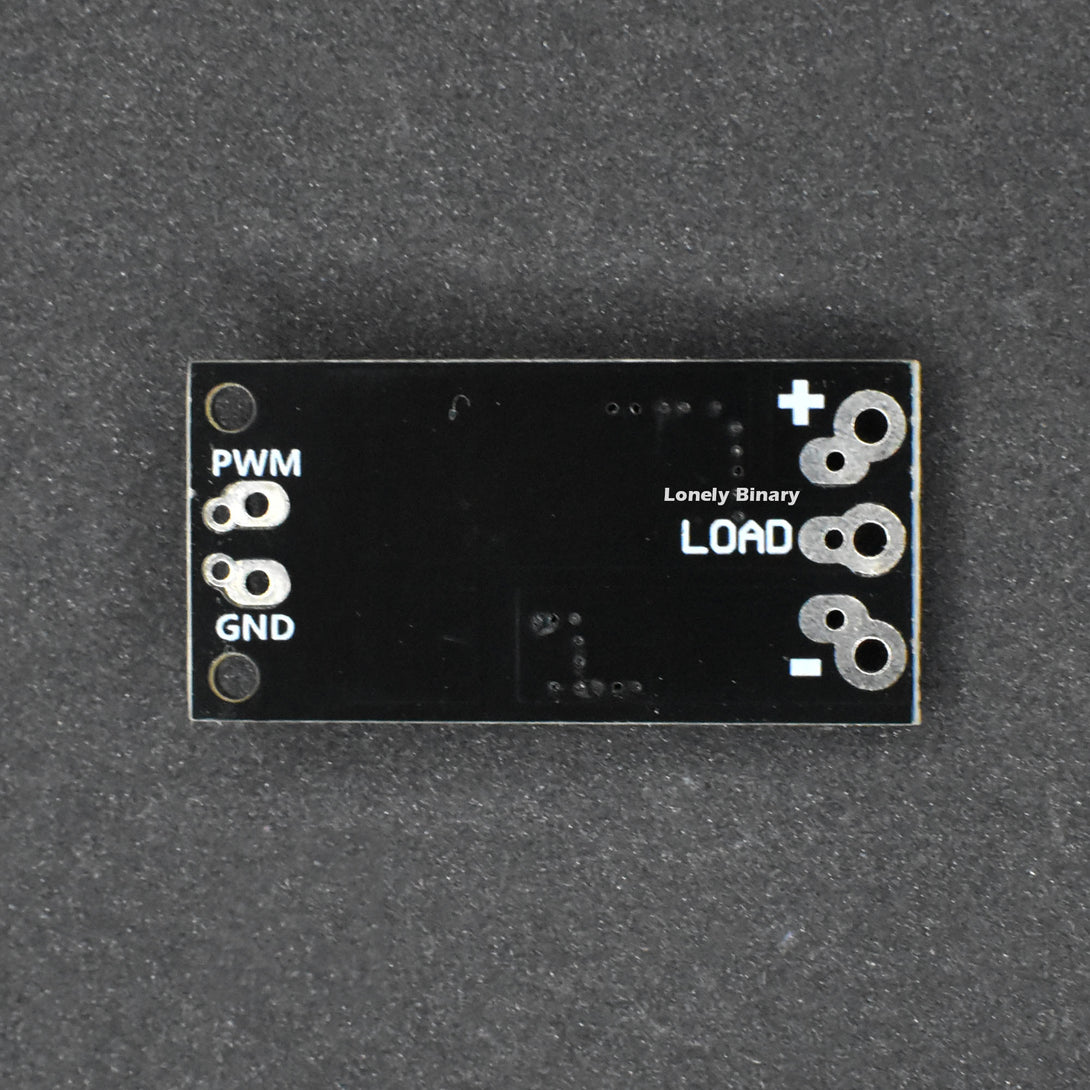

With the Lonely Binary LR7843 module, simplicity meets functionality. Connect three essential components - a logic signal to control the MOSFET, a DC power supply for the device being controlled, and the load itself. It's that simple!
From 6V to 28V, the module supports a wide range of output switching voltages. No matter your project's power requirements, the Lonely Binary LR7843 module is ready to handle it all.
Experience the power of Lonely Binary with the LR7843 MOSFET Control Module. With its exceptional features, outstanding performance, and unparalleled versatility, your projects will reach new heights. Unleash your creativity and let Lonely Binary be your guiding force.
