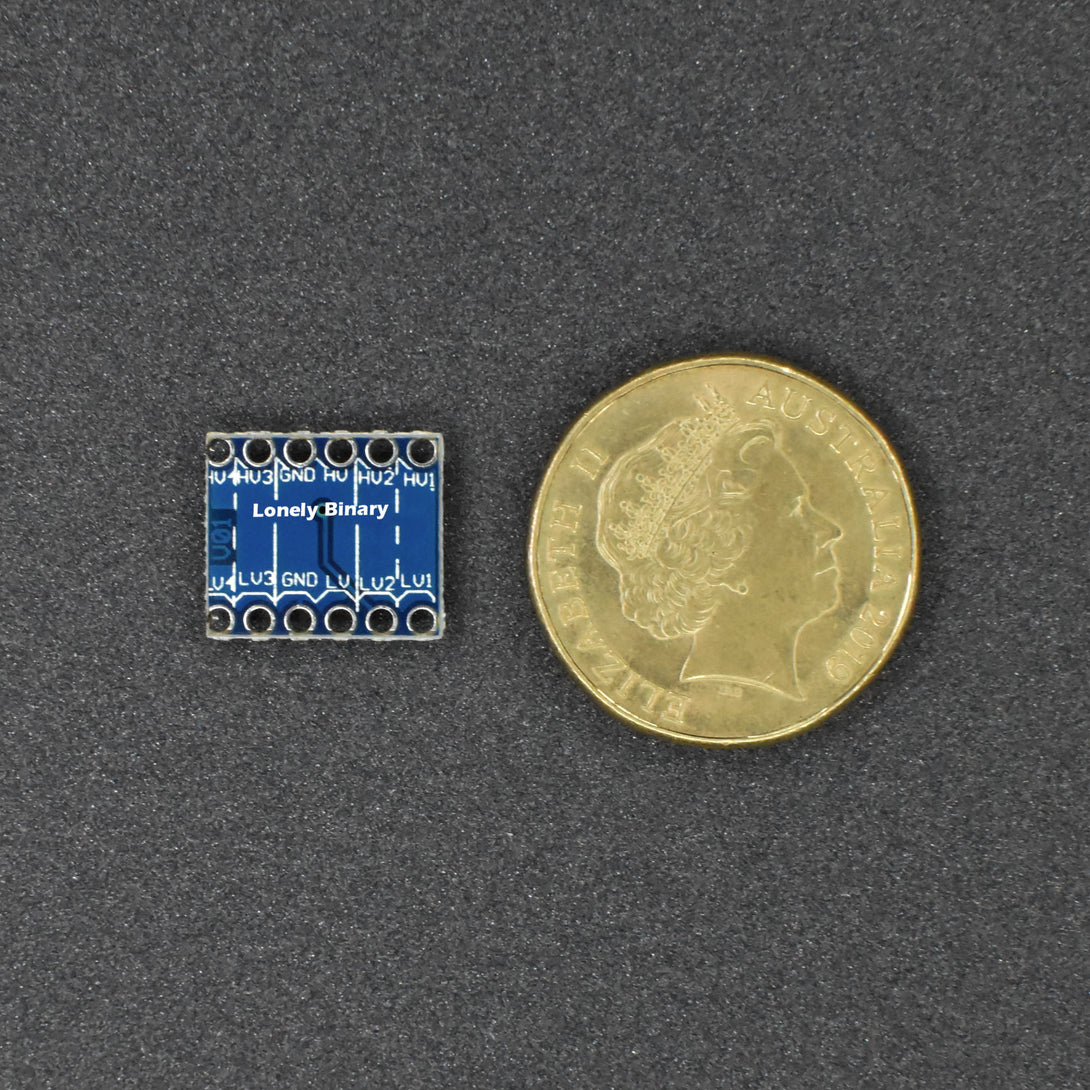

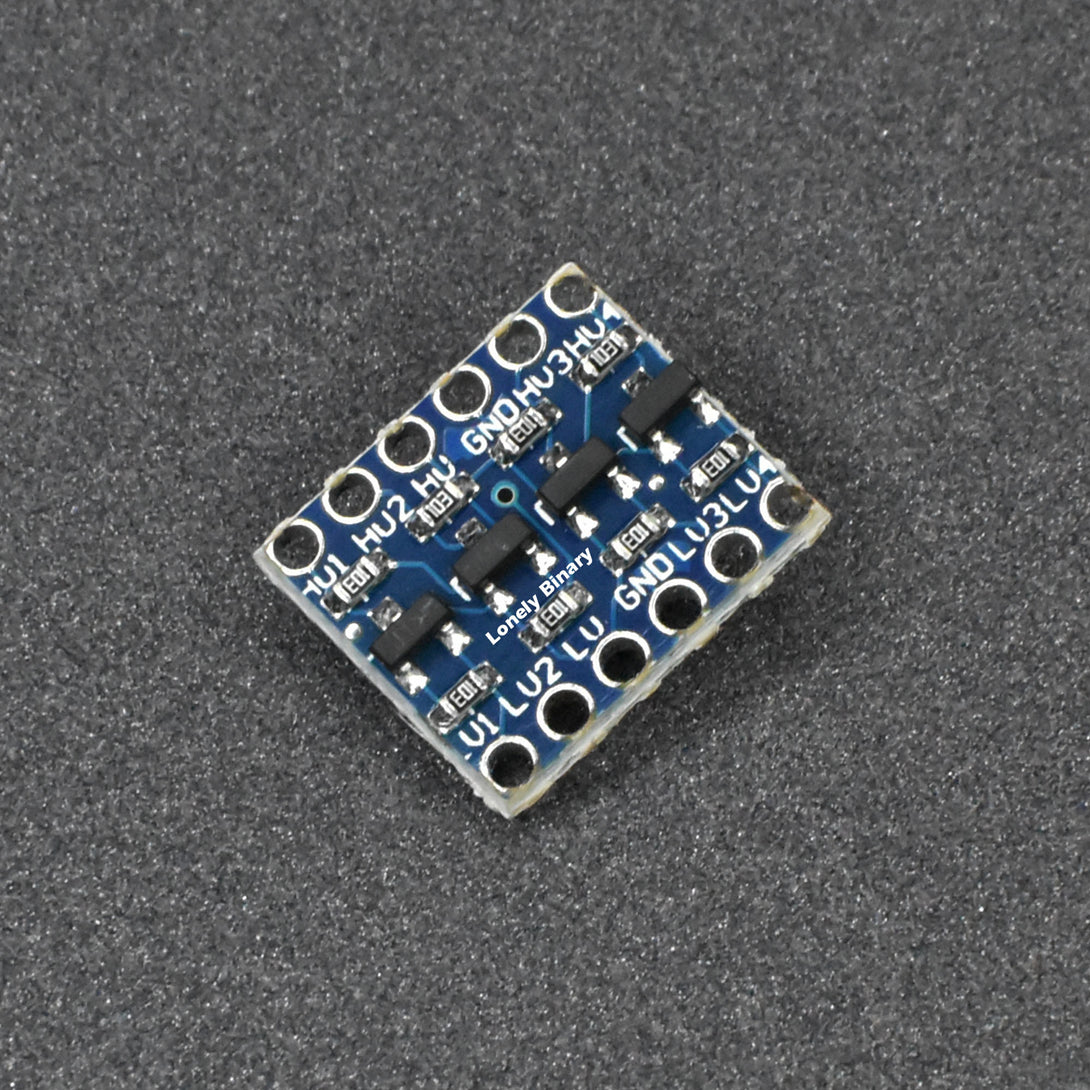

Logic Level Converter Bi-Directional

$2.19 AUD
The price is for a single piece.
There are 6 pieces in the retail box.
The quantity has to be a multiple of 6.
Add to Wishlist

visamasterapple paygoogle paypaypal
SKU: MOD-TTLCONVERTER-4WAY
Categories: Converter Module
Overview

Behold the Magical Lonely Binary Bi-Directional Logic Level Converter - Your Wizardry Bridge Between Worlds!

Introducing the Lonely Binary Bi-Directional Logic Level Converter - a breadboard-friendly sorcerer that effortlessly converts between different realms of logic.

Step into a world of enchantment as this converter gracefully dances between the realms of 5V and 3.3V logic, with four independent channels that work their magic in both directions! It's like having four wise wizards guiding you through the mystical realm of logic conversion.

Power this magical board from the two voltage sources you're using - it's like charging your spellbook with the essence of two powerful elements! Connect the higher voltage (e.g., 5V) to the 'HV' power pin and the lower voltage (e.g., 3.3V) to the 'LV' power pin. As you complete the magical circuit, ground the connection with the 'GND' pin, grounding all magical energies!

Embrace the magic of the Lonely Binary Bi-Directional Logic Level Converter, bridging the gap between different voltage worlds with grace and precision. Trust in Lonely Binary's enchanting craftsmanship, and let your projects soar to new heights of logic wonder!

Step into the world of logic enchantment with Lonely Binary's Bi-Directional Logic Level Converter.



Documents

What’s in the Box

There are 6 pieces in the retail box.
The listing price is for

  • 1 x TTL Converter Module
