Description

Twelve small USB-C breakout boards that take 5 V from any USB-C charger and bring the power and USB 2.0 lines out to 2.54 mm pads.

Highlights

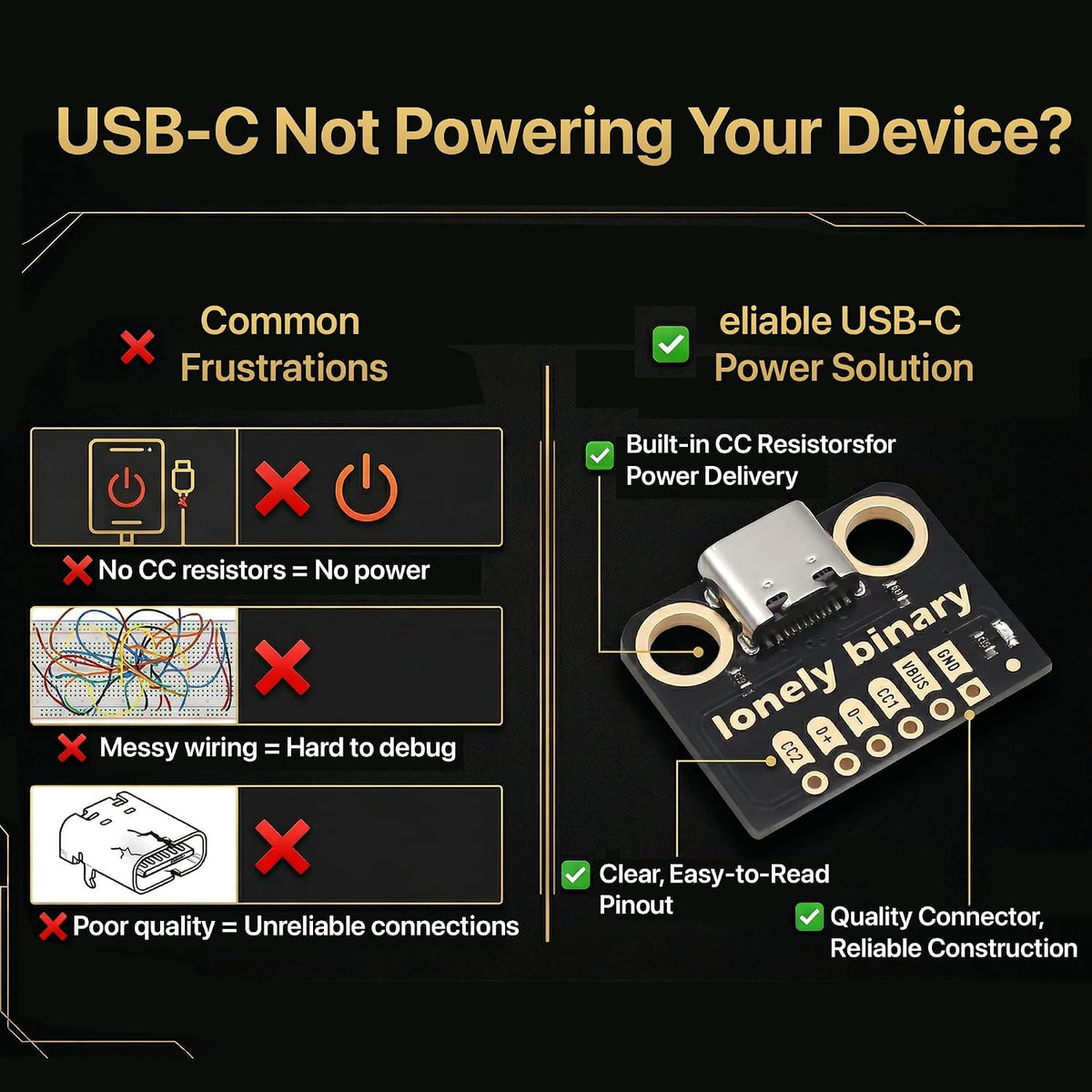

• CC resistors fitted. 5.1 kΩ on both CC1 and CC2, so a USB-C charger supplies 5 V whichever way the plug goes in.

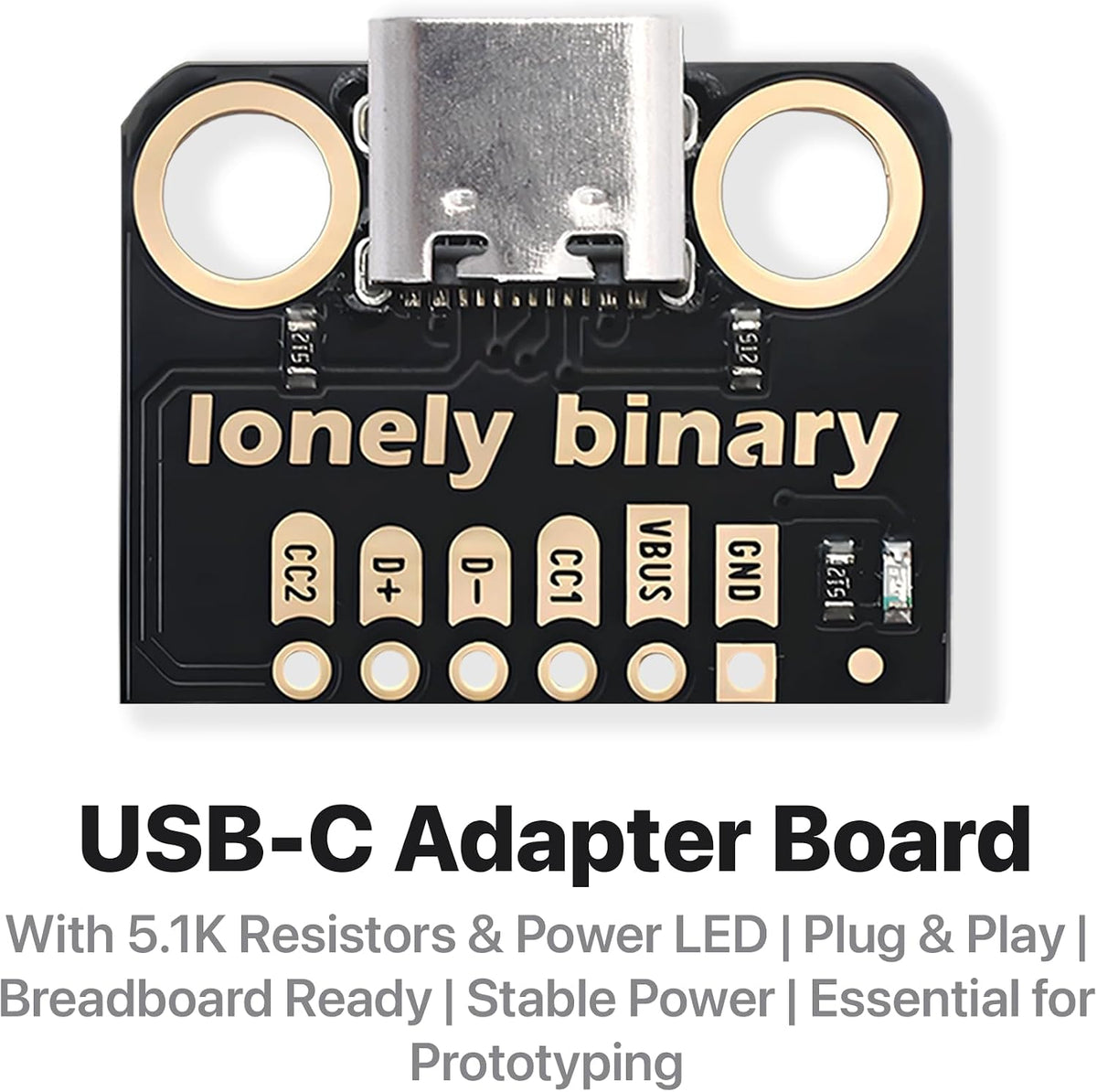

• Power LED. A blue LED lights when VBUS is present, confirming the source has switched on.

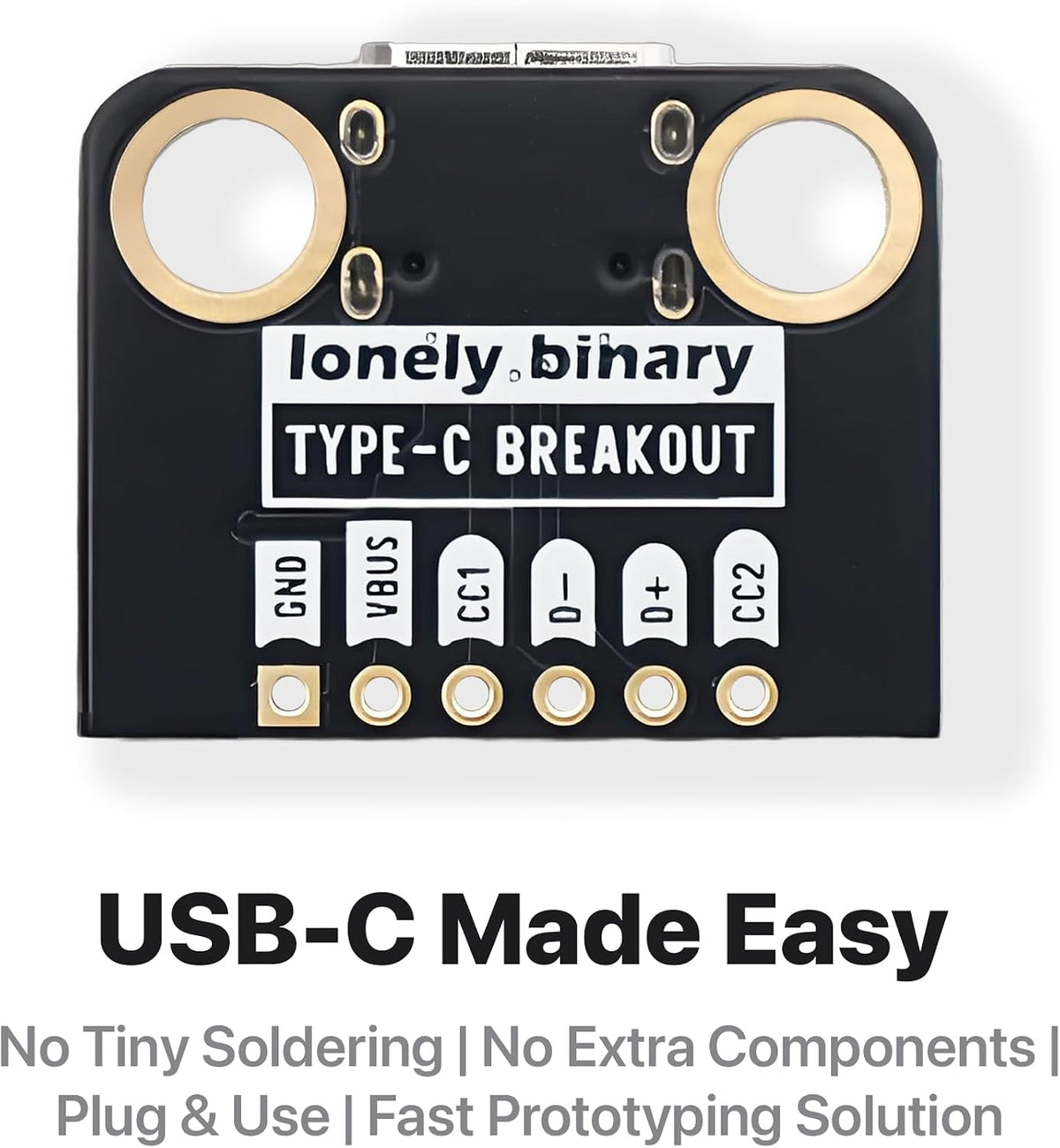

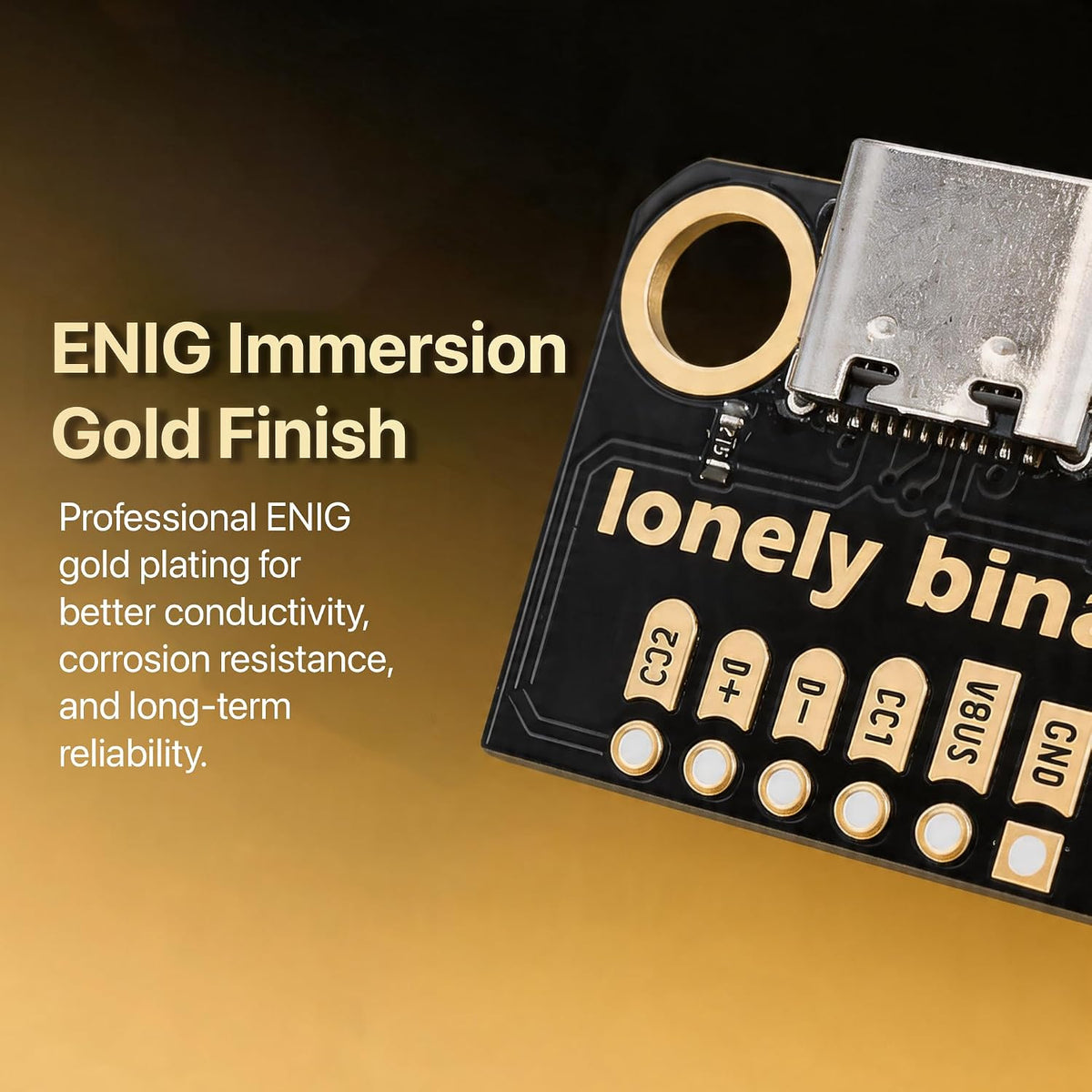

• Six pins on 2.54 mm. GND, VBUS, CC1, D−, D+ and CC2, labelled on both sides, for breadboards and perfboard.
• USB 2.0 data. D+ and D− are brought out; there are no SuperSpeed pins.

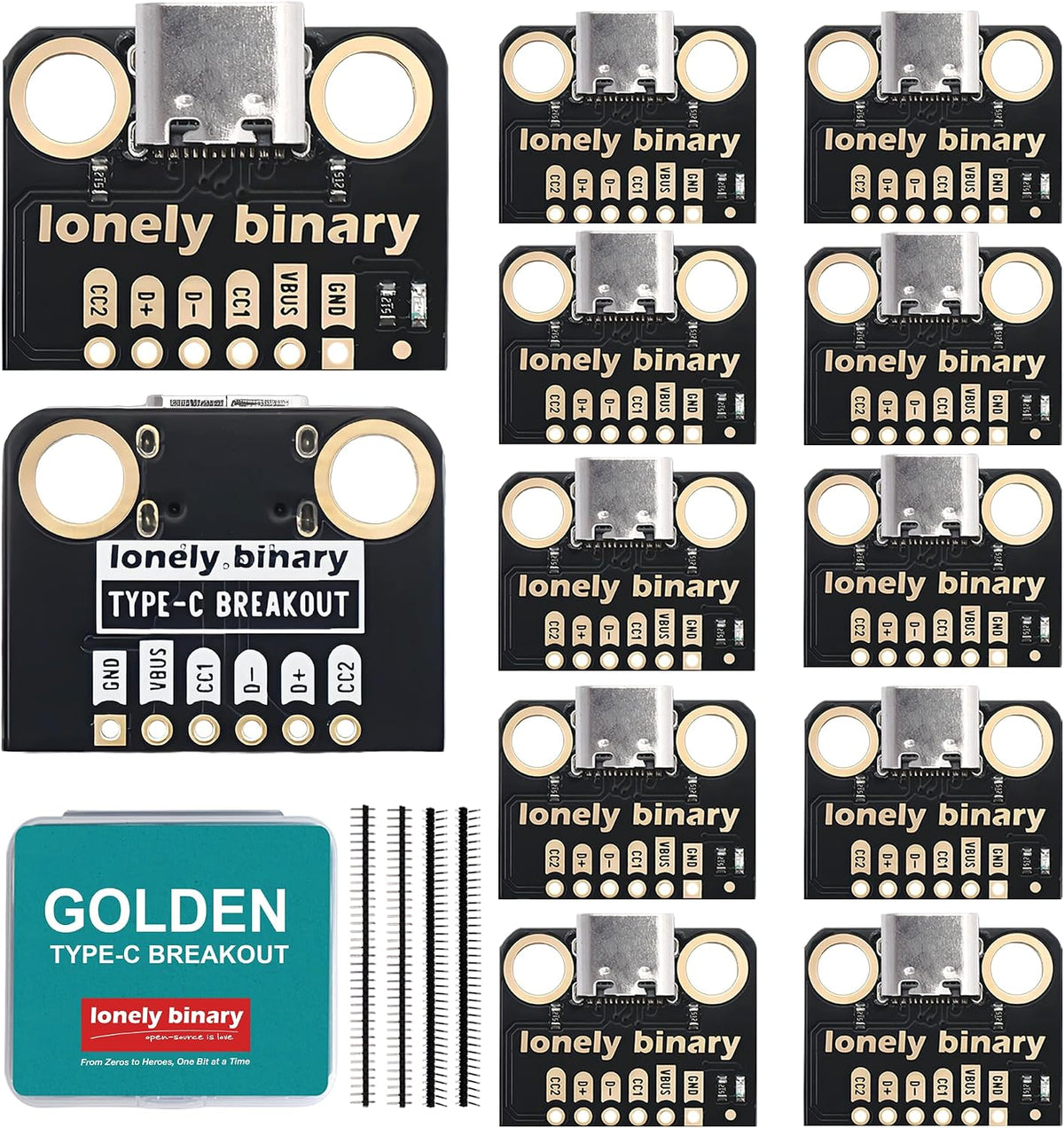

In the box

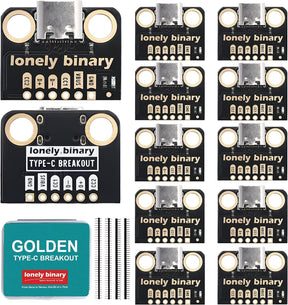

• 12 × USB-C breakout board, CC resistors fitted
• 2 × 40-pin straight breakaway male header strip
• 2 × 40-pin right-angle breakaway male header strip

Specifications

• Output: 5 V (no Power Delivery negotiation)
• Pins: GND, VBUS, CC1, D−, D+, CC2 at 2.54 mm
• CC resistors: 5.1 kΩ to GND on CC1 and CC2

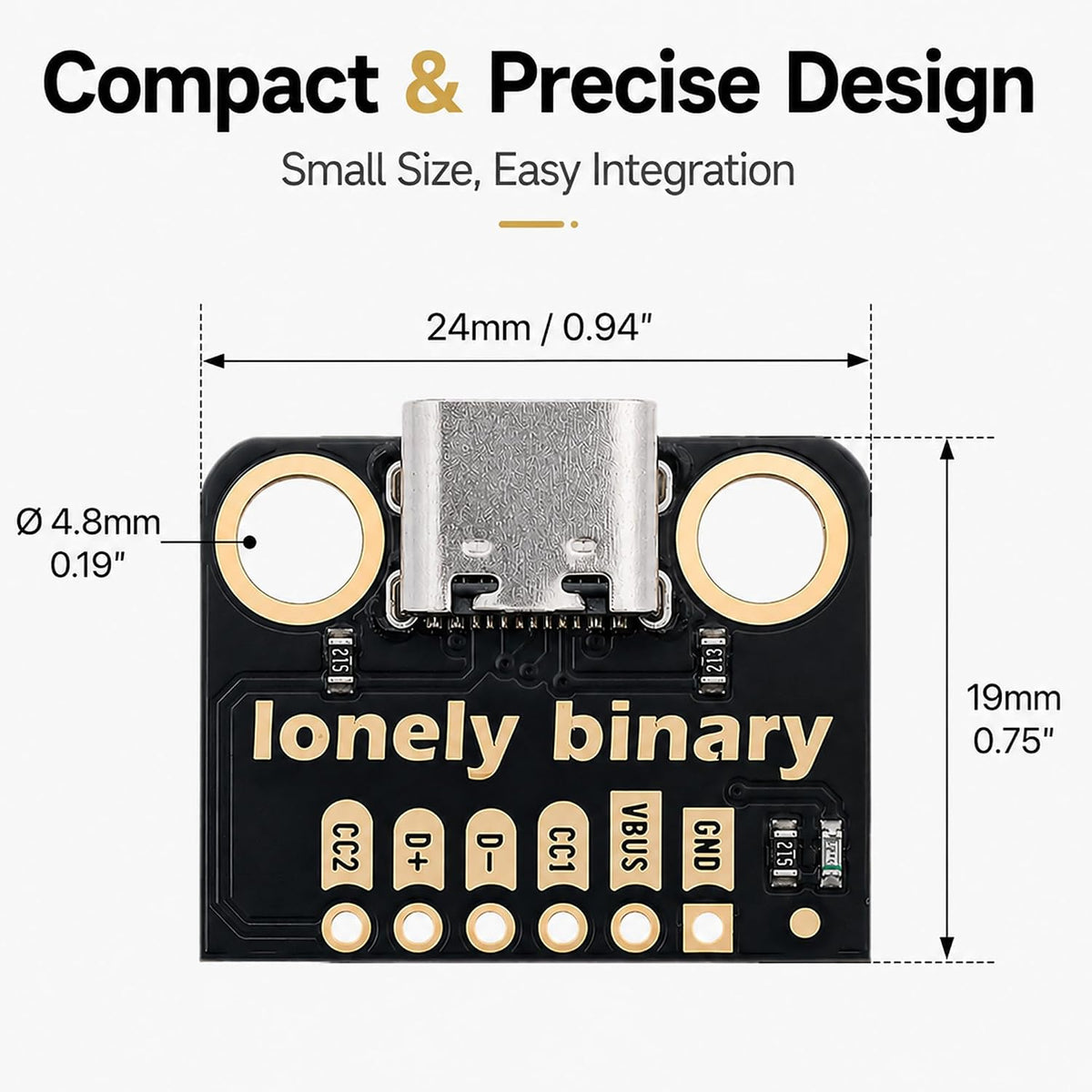

• Board size: 19.0 × 24.0 mm

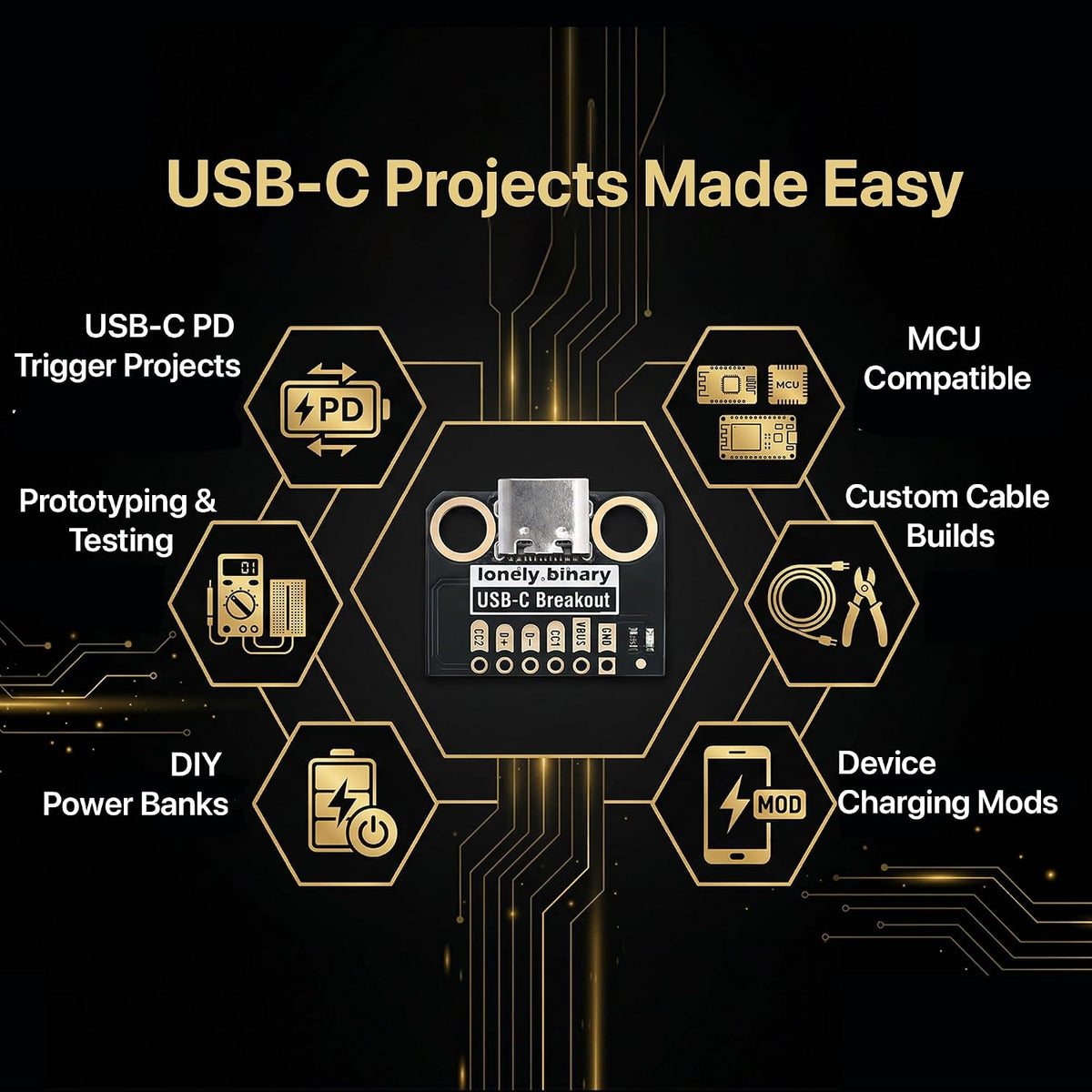

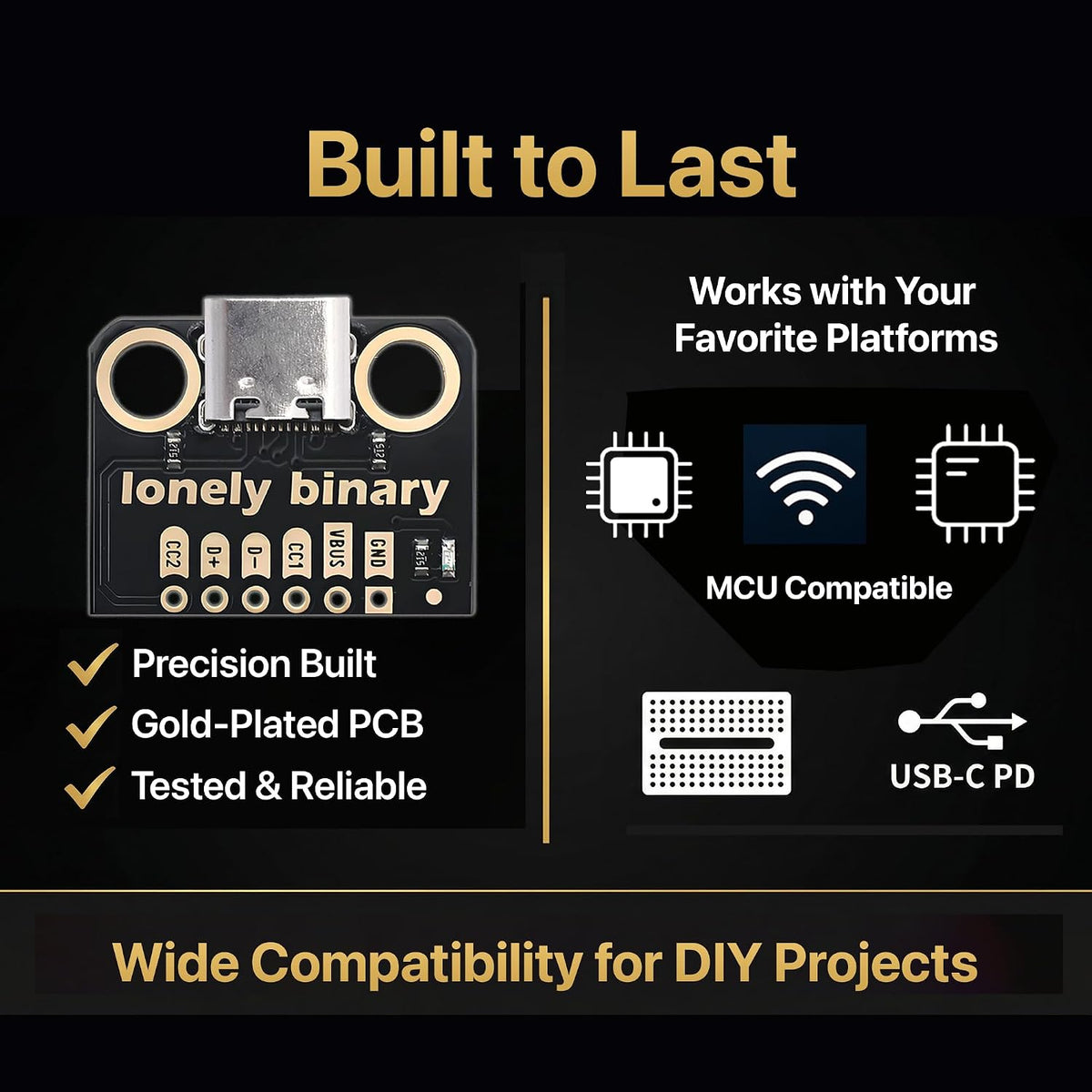

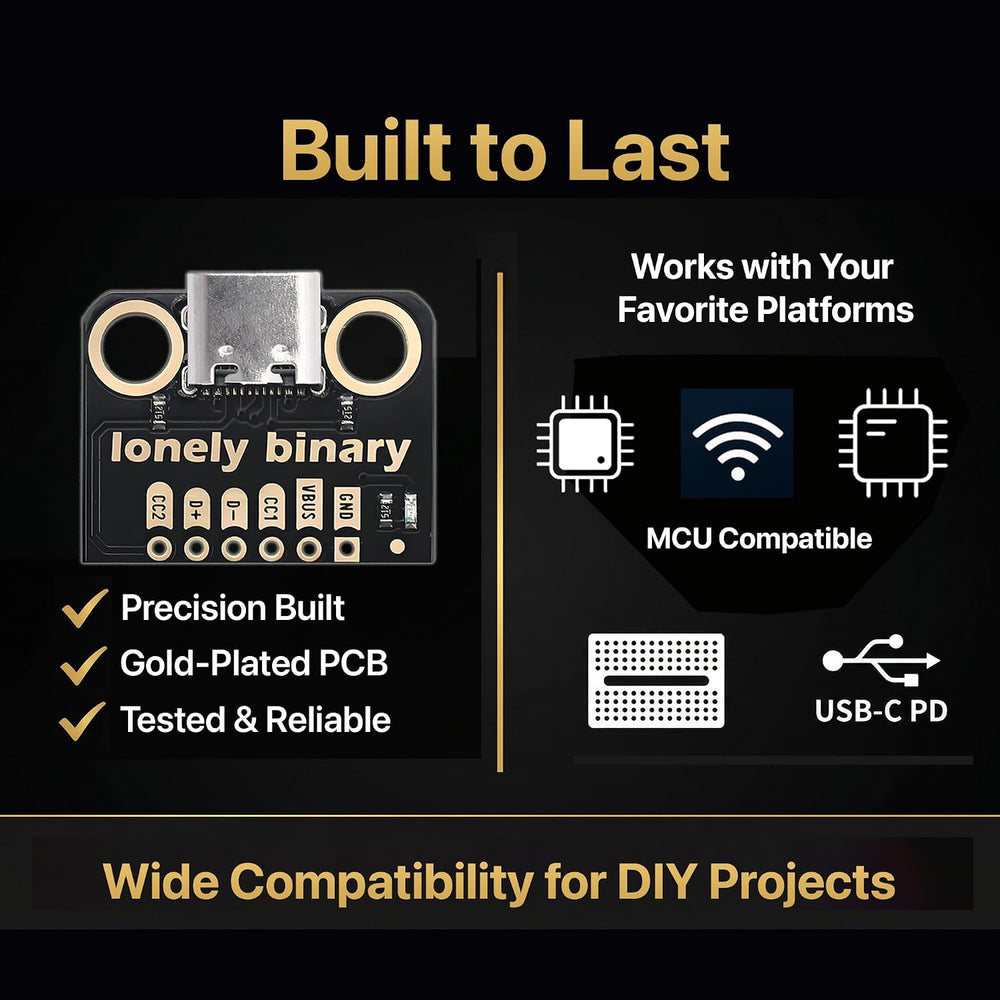

Works with

Breadboards, perfboard and custom PCBs; powers ESP32, ESP32-S3 and similar projects from a USB-C charger.
