DIY UNO R3 Kit, Through-Hole Soldering
DIY UNO R3 Kit, Through-Hole Soldering is backordered and will ship as soon as it is back in stock.
Warranty and returns
Warranty and returns
12-month warranty on everything we sell. If a part is faulty, we'll replace or refund it and cover the return postage. Damage from soldering, wiring mistakes or modification isn't covered.
Changed your mind? Return it unused within 30 days for a full refund, with no restocking fee.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. Full returns policy
Shipping
Shipping
Free standard shipping within Australia on orders over A$55. Under A$55, standard shipping is A$6.95.
New Zealand A$8.99. Rest of the world A$14.95, flat rate.
Orders ship from Macquarie Park, NSW within one business day of payment when the item is in stock. Shipping policy
DIY UNO R3 Kit, Through-Hole Soldering is backordered and will ship as soon as it is back in stock.
Description
Description

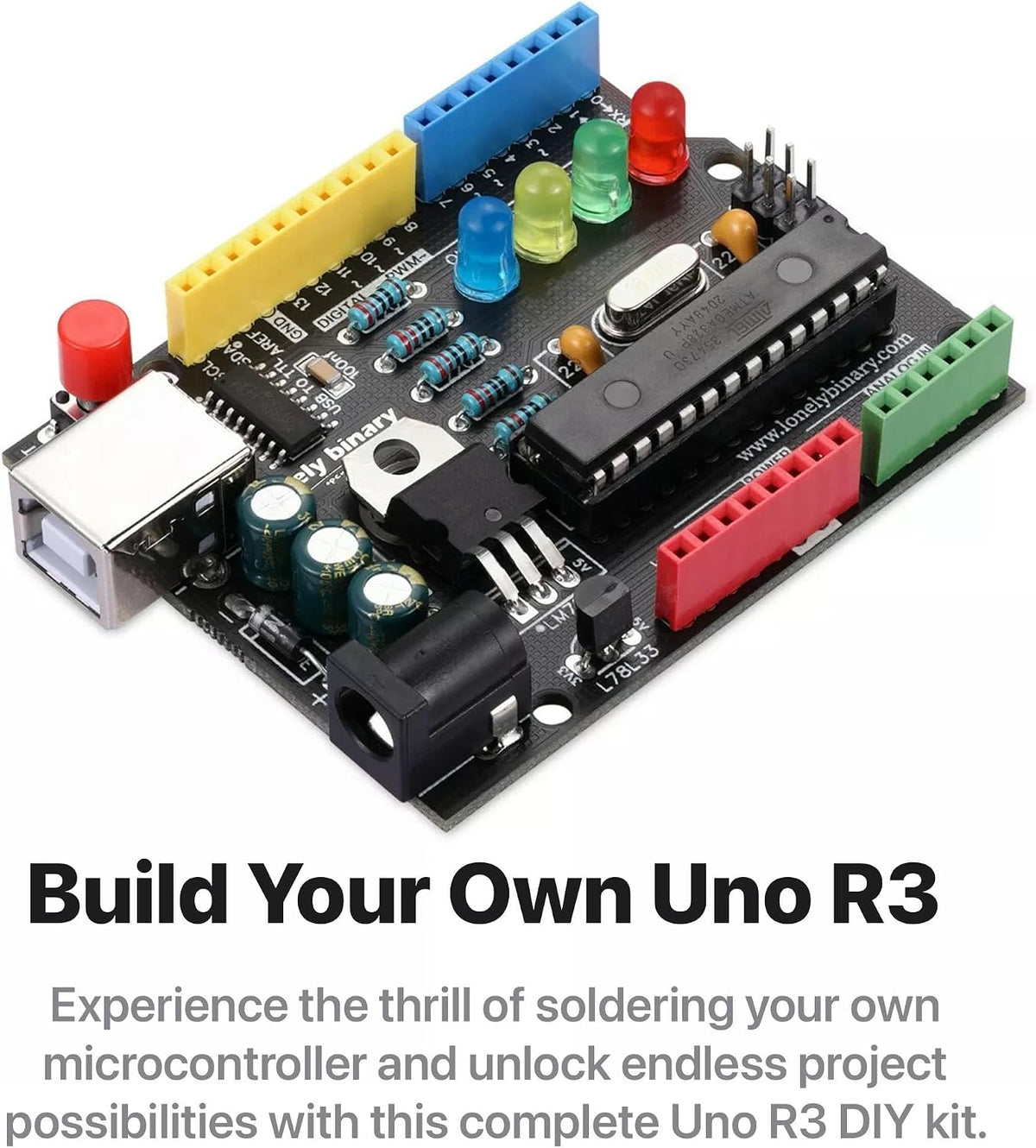

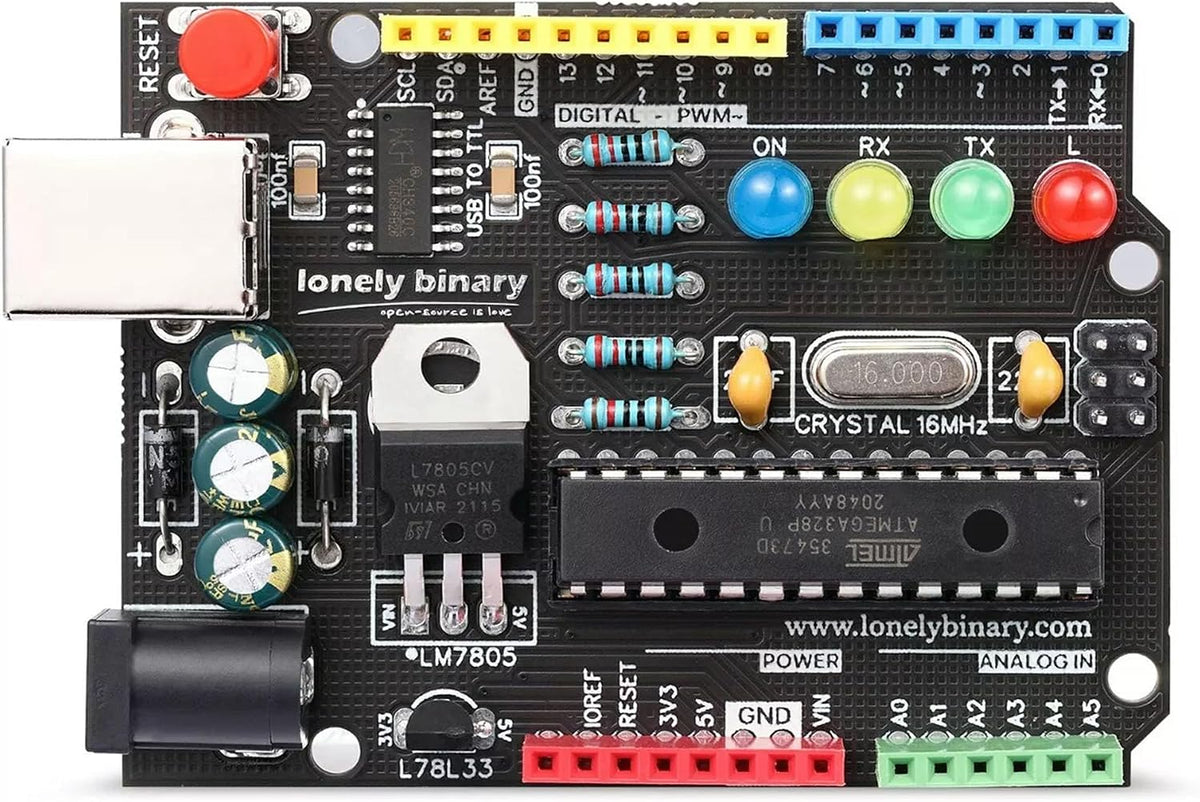

Build your own UNO R3-compatible board from parts. Every part you solder is through-hole, which makes it a good first soldering project for students and hobbyists.
Highlights

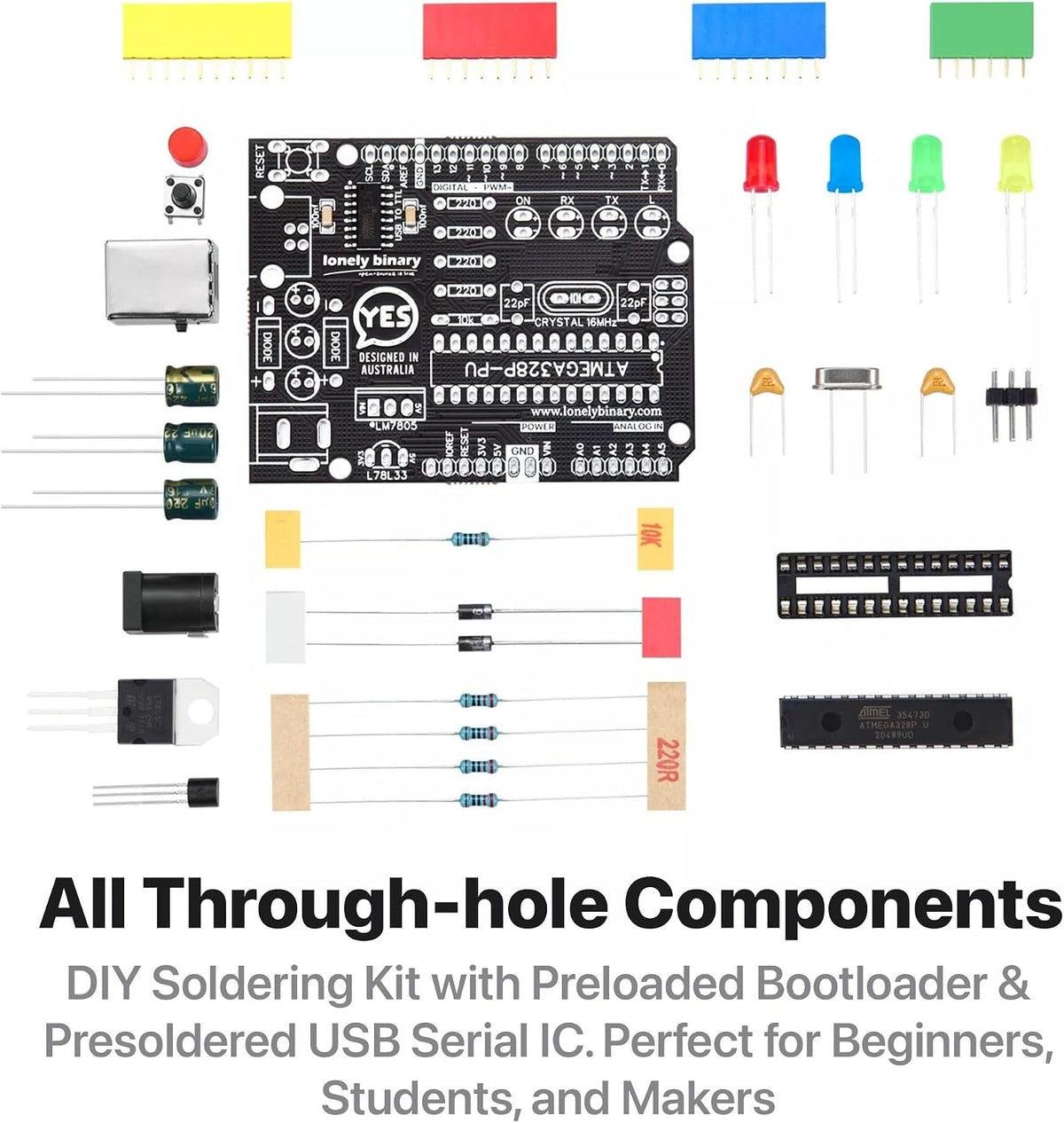

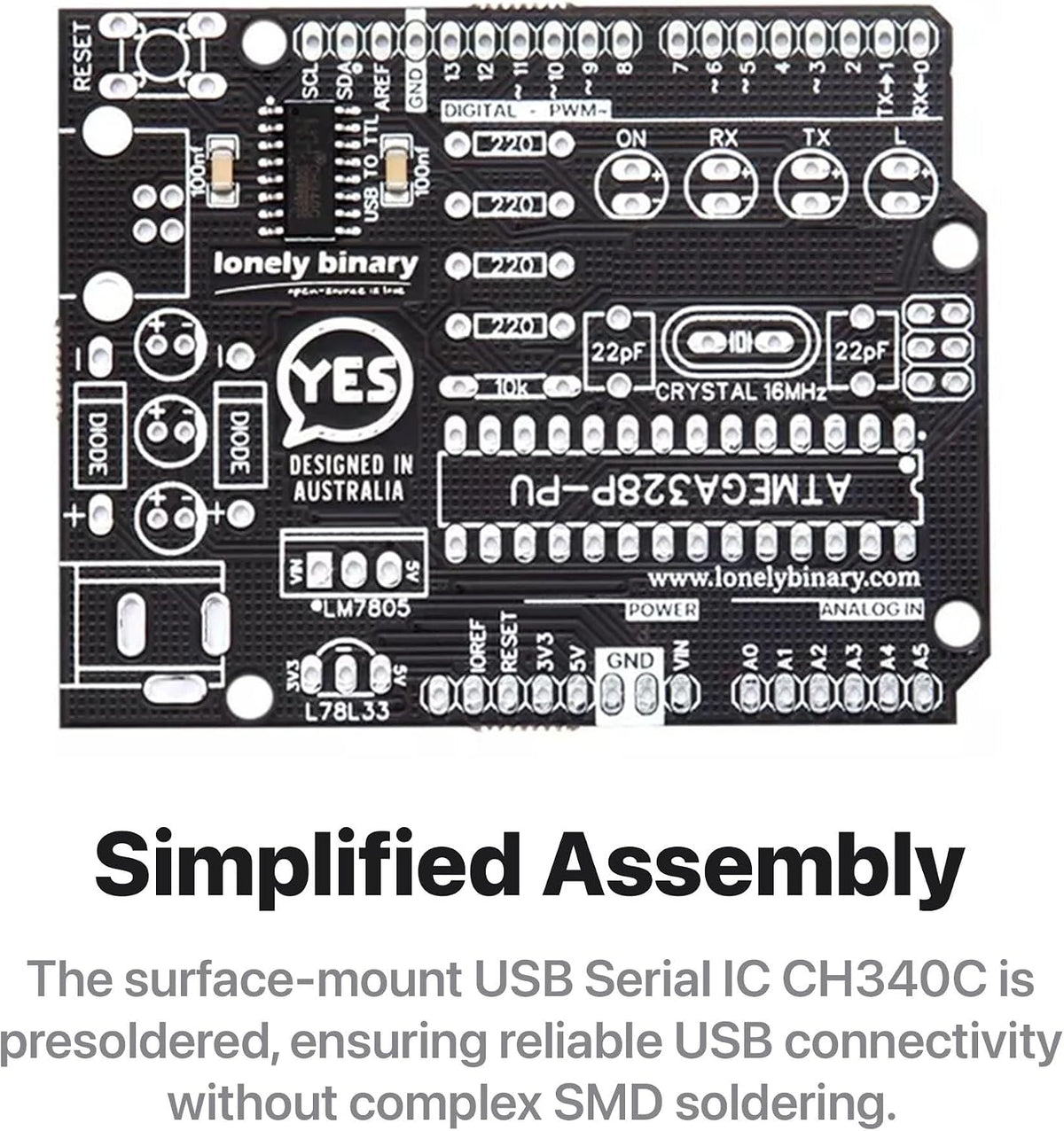

- Through-hole assembly. All the parts you fit are through-hole; the surface-mount USB-to-serial chip comes already soldered.

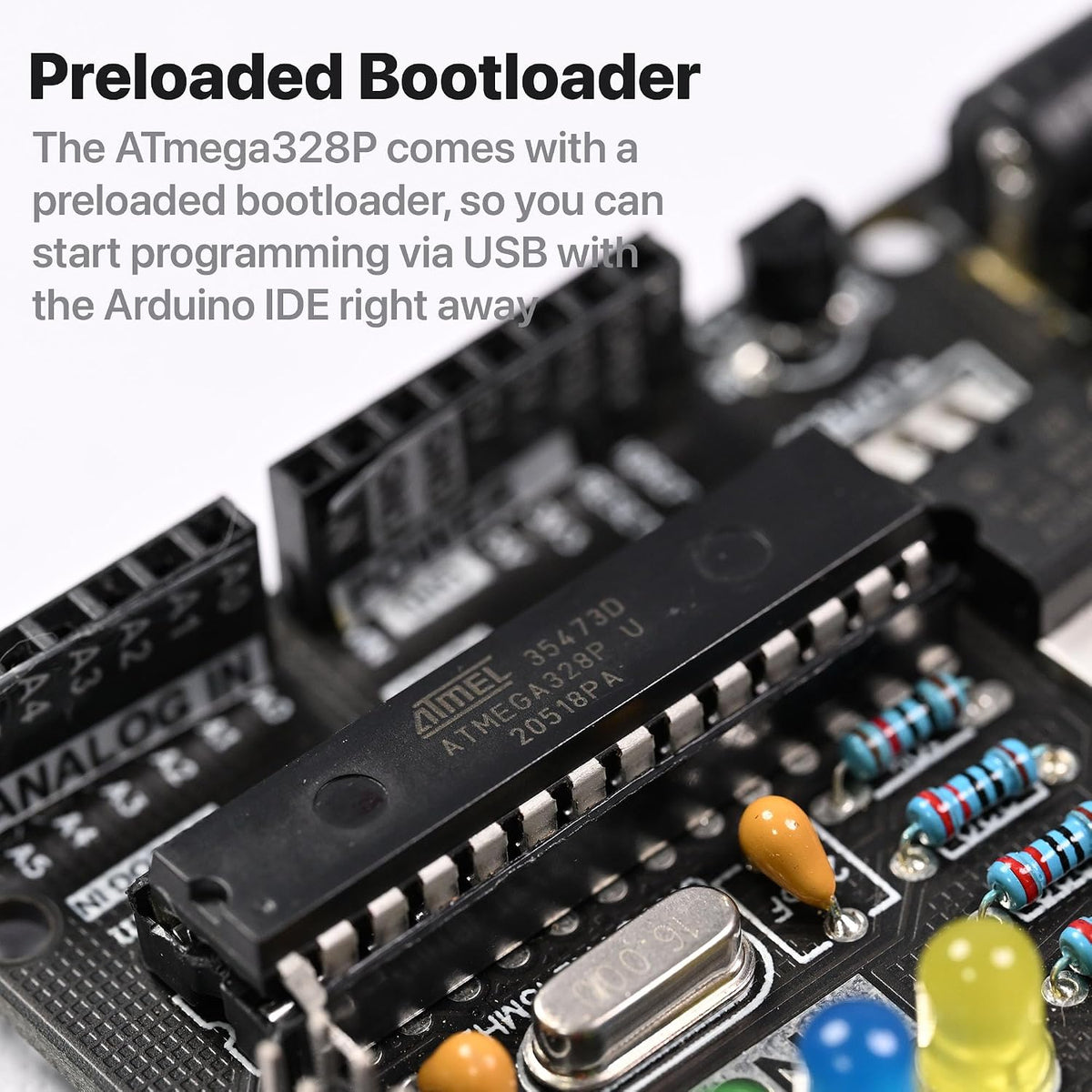

- Bootloader preloaded. The ATmega328P arrives with its bootloader, so you can upload code over USB as soon as it is built.
- Full UNO I/O. 14 digital pins (6 PWM) and 6 analog inputs, with UART, SPI and I2C.
- Flexible power. Run from USB or a 7–12 V DC supply, with a resettable polyfuse protecting the USB port.
- Shield compatible. The finished board takes standard UNO shields.
In the box
- PCB with USB-to-serial chip fitted
- ATmega328P with bootloader
- All through-hole components for assembly
Specifications
- Microcontroller: ATmega328P
- Memory: 32 KB flash (0.5 KB used by bootloader), 2 KB SRAM, 1 KB EEPROM
- I/O: 14 digital pins (6 with PWM), 6 analog inputs
- Power: USB or 7–12 V DC
Works with
Arduino IDE, with online tutorials and sample code.
