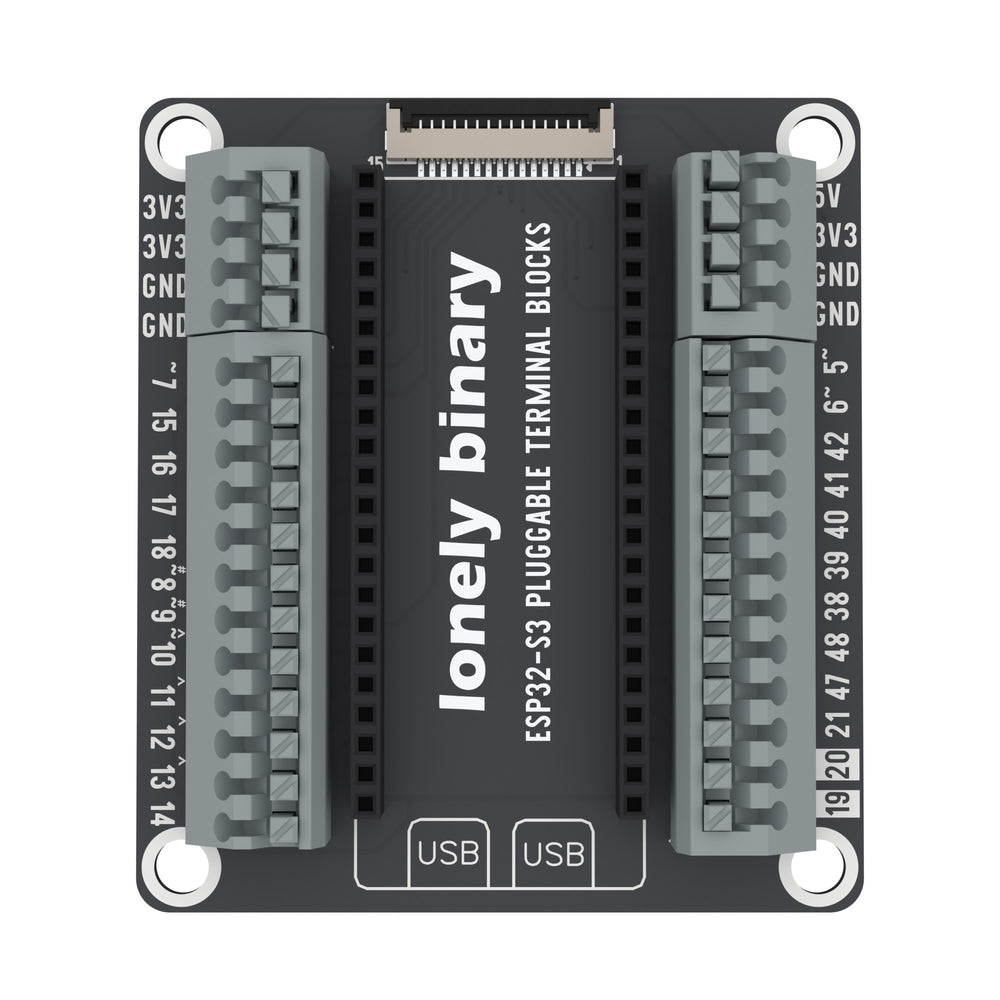

ESP32-S3 Pluggable Terminal Base seen from above: grey pluggable terminal blocks either side of the ESP32-S3 sockets

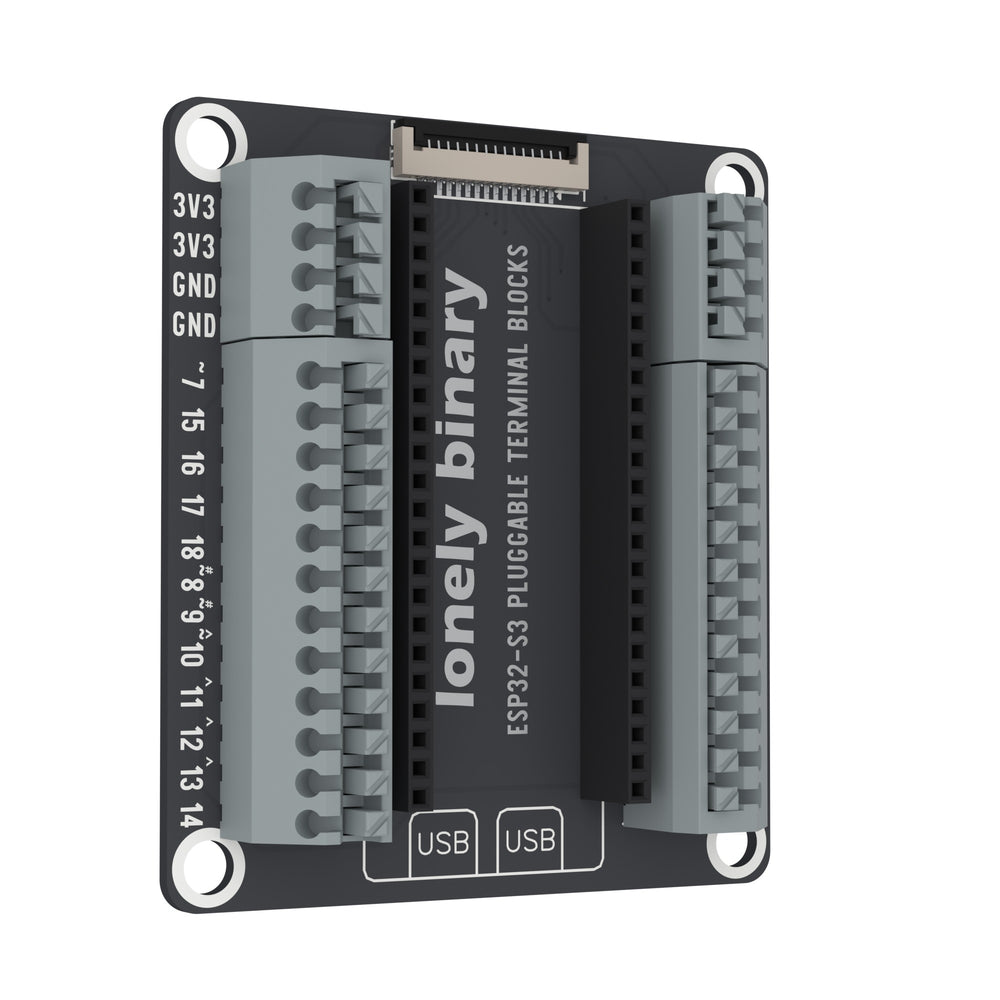

ESP32-S3 Pluggable Terminal Base swung 30 degrees away on its left edge

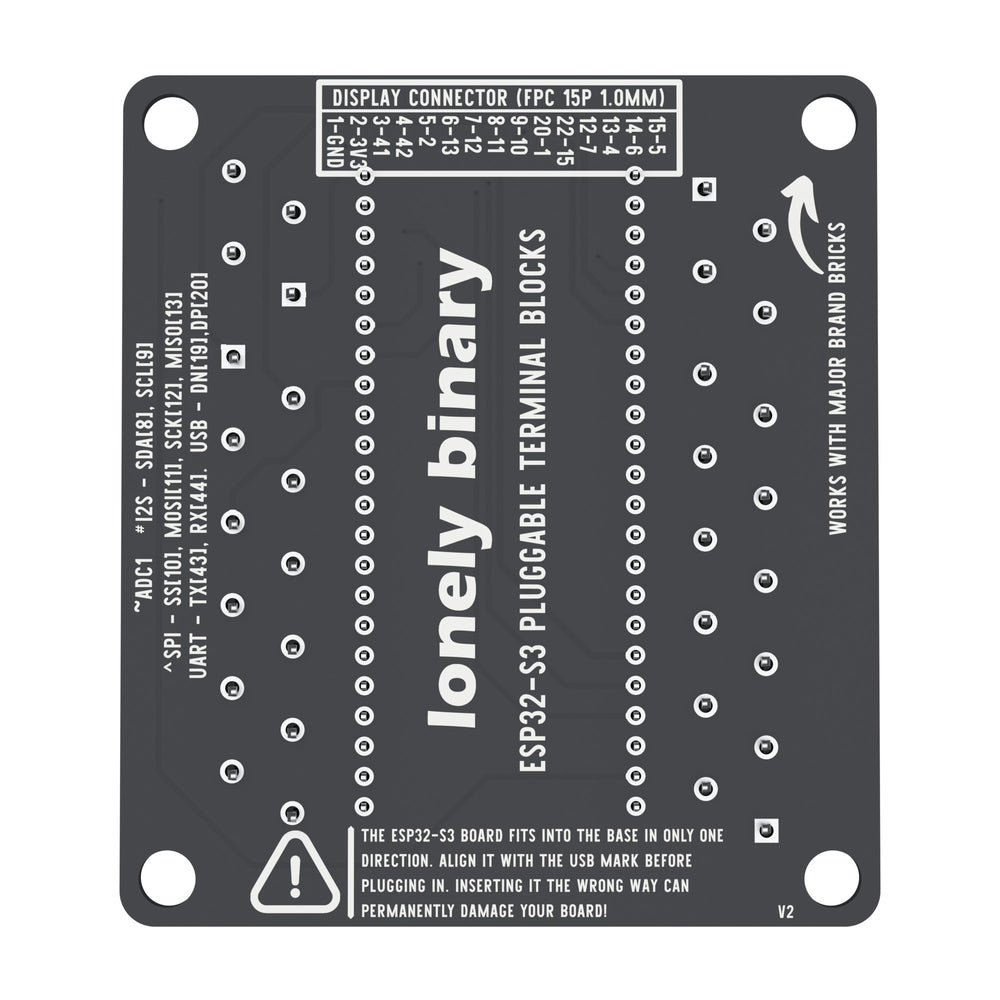

Underside of the ESP32-S3 Pluggable Terminal Base with the display connector pin mapping

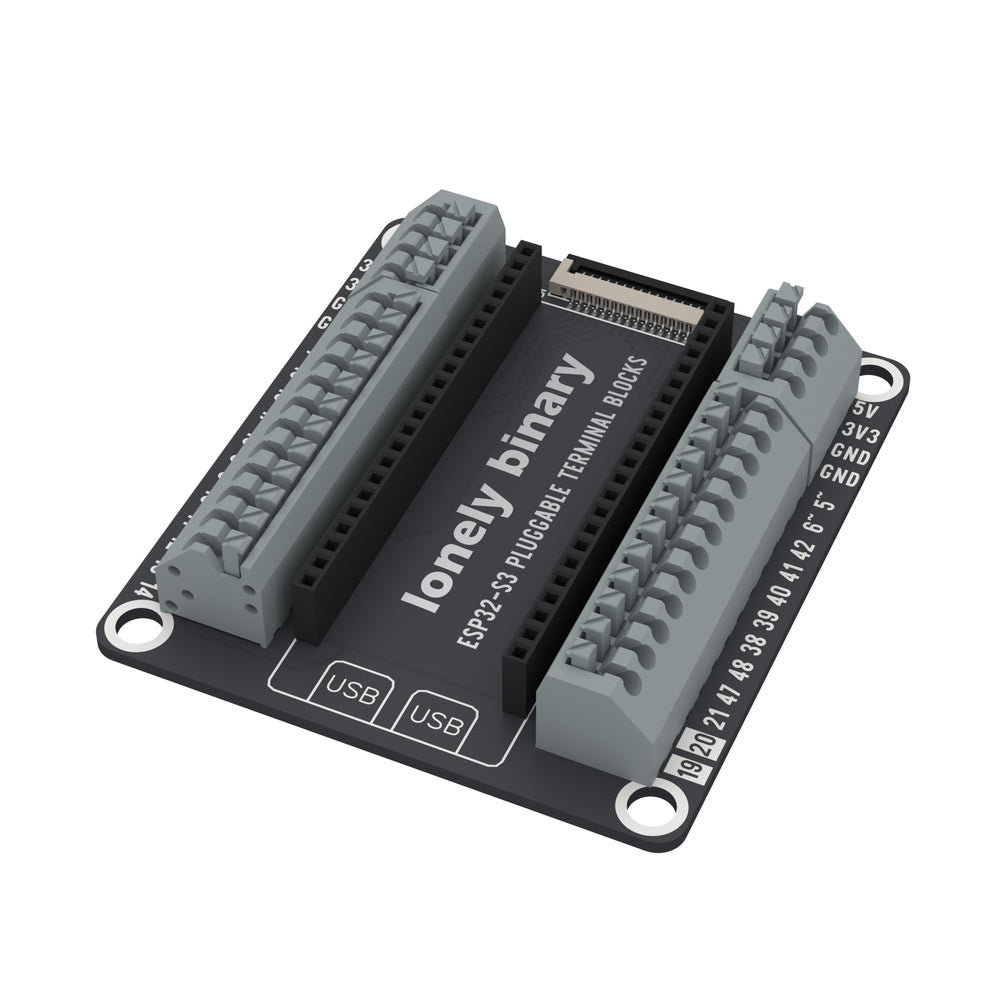

ESP32-S3 Pluggable Terminal Base, angled view

ESP32-S3 Pluggable Terminal Base 3D model

Description

A base for the ESP32-S3 with pluggable terminal blocks: push the wire in and it is held, pull the block off to take the wiring away with it. No soldering and no screwdriver.

Highlights

Pluggable terminals. 3.5 mm terminal blocks, two 12-way and two 4-way, make wiring and rewiring quick.
Display port. A 15-way FPC connector links Lonely Binary TFT, E-Ink and touch displays with one ribbon cable (displays sold separately).
Four mounting holes for a case or a baseplate.

In the box

1 × ESP32-S3 Pluggable Terminal Base

The ESP32-S3 board is not included.

Specifications

Terminals: 2 × 12-way and 2 × 4-way, 3.5 mm pitch, pluggable
ESP32-S3 sockets: 2 × 22-way, 2.54 mm
Display connector: 15-way FPC
