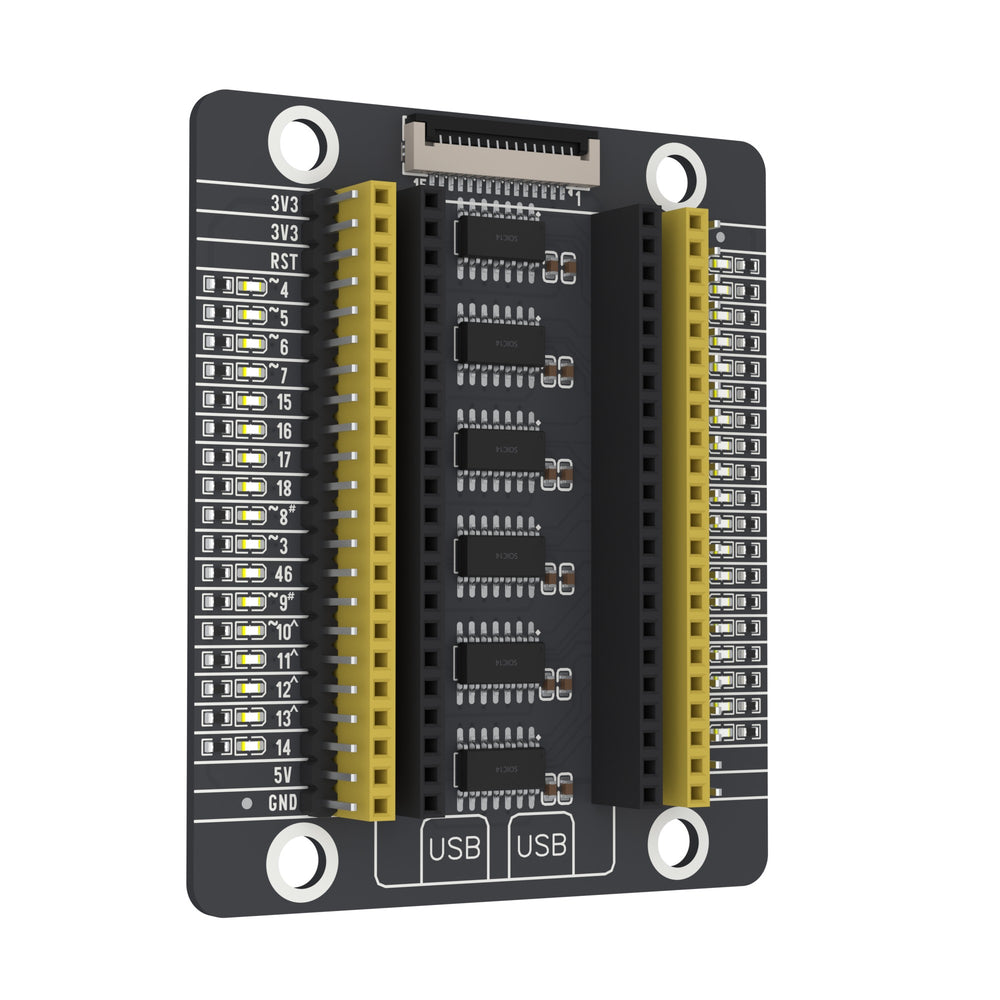

ESP32-S3 PinPulse Shield swung 30 degrees away on its left edge

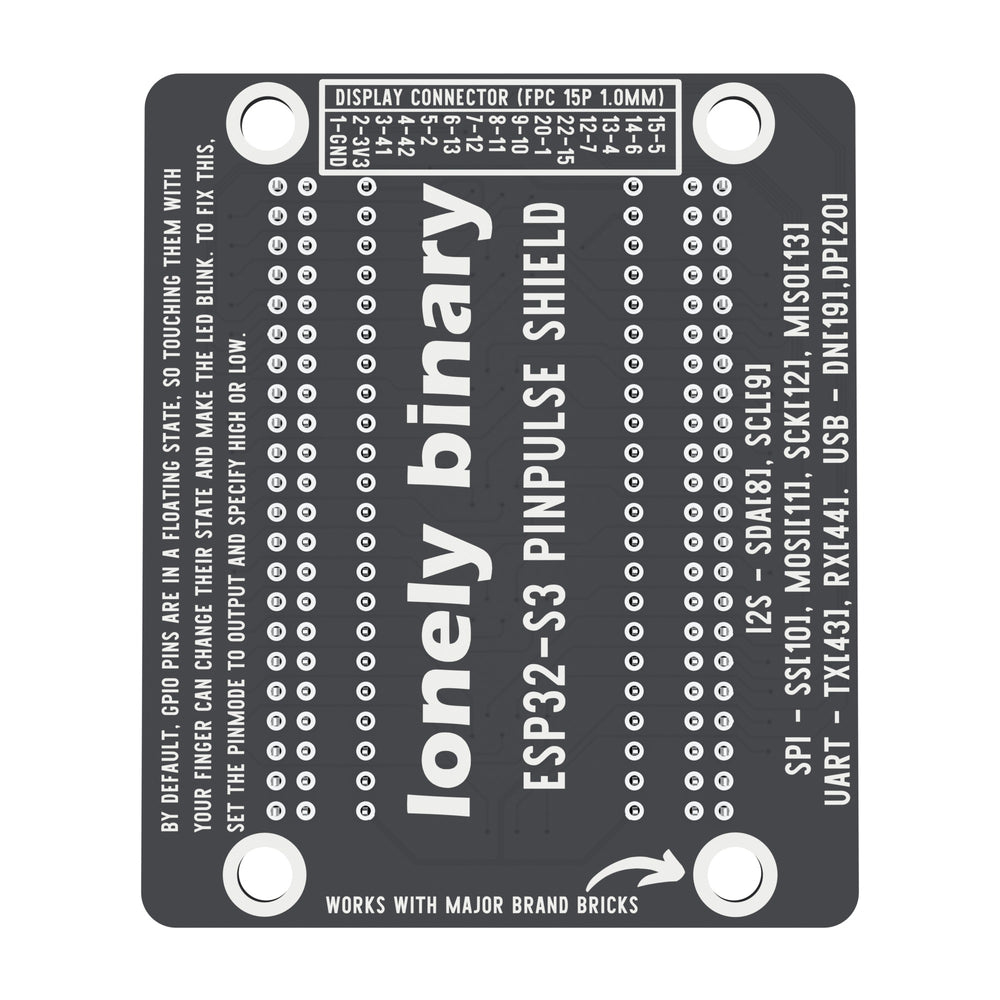

Underside of the ESP32-S3 PinPulse Shield with pin labels and display connector mapping

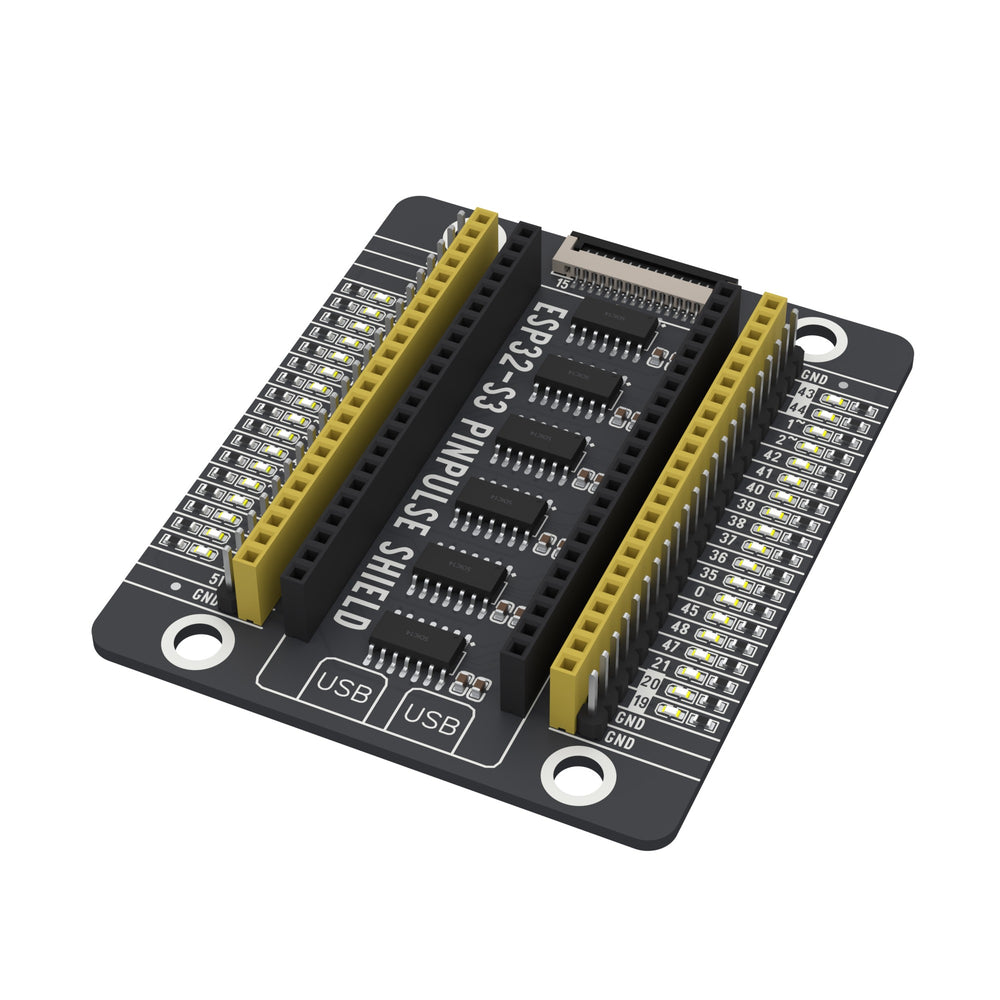

ESP32-S3 PinPulse Shield with 36 GPIO LEDs, angled view

Description

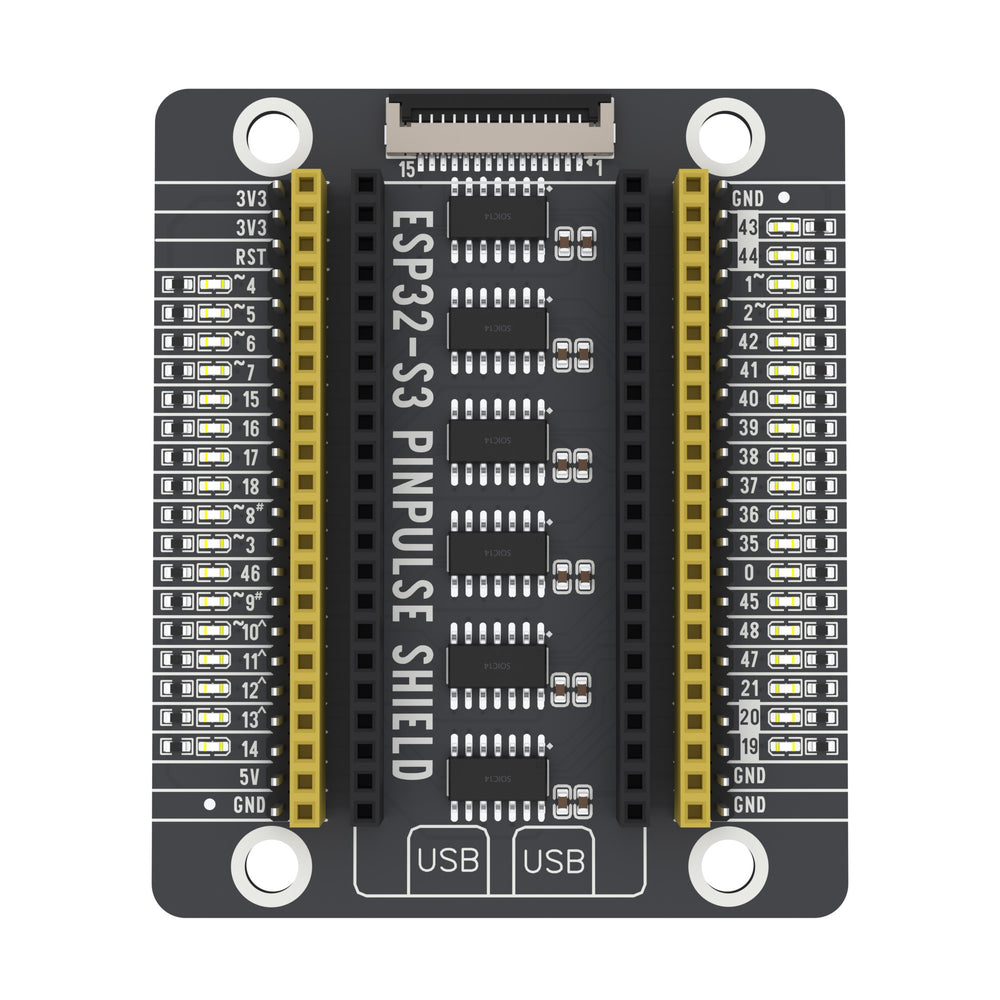

The PinPulse shield for the ESP32-S3: an LED on every GPIO, so you can see pin states as your code runs. The ESP32-S3 board plugs into the two black sockets in the middle; every pin comes out again at the edge.

Highlights

36 GPIO LEDs. Driven through inverter chips, so the LEDs show HIGH and LOW without loading SPI, I2C, UART or PWM signals.
Pins and sockets. Every GPIO has both a male pin and a female socket, taking any jumper wire.
Display port. A 15-way FPC connector links Lonely Binary TFT, E-Ink and touch displays with one ribbon cable (displays sold separately).
Four mounting holes for a case or a baseplate.

In the box

1 × ESP32-S3 PinPulse shield

The ESP32-S3 board is not included. For the shield with an ESP32-S3 Gold Edition (N16R8) board, see the ESP32-S3 Gold Edition + PinPulse Shield set.

Specifications

GPIO LEDs: 36, one per GPIO
Edge rows: 2 × 22 pins and sockets a side
Display connector: 15-way FPC
