Description

Three ESP32-S3 Gold Edition boards, each with a PinPulse shield that lights an LED on every GPIO, so you can see pin states while you prototype. Suited to classroom sets and multi-node projects.

Highlights

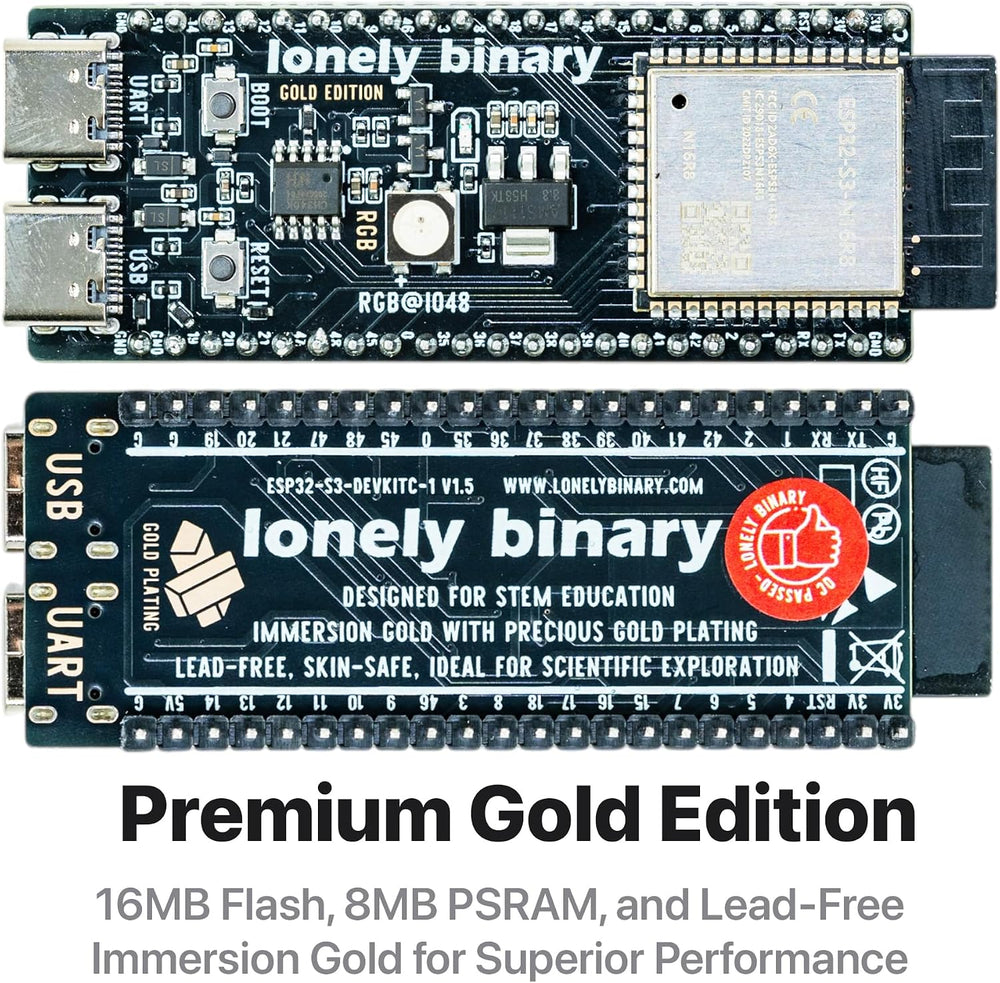

• 16 MB flash, 8 MB PSRAM. Room for large programs, OTA updates and graphical interfaces.

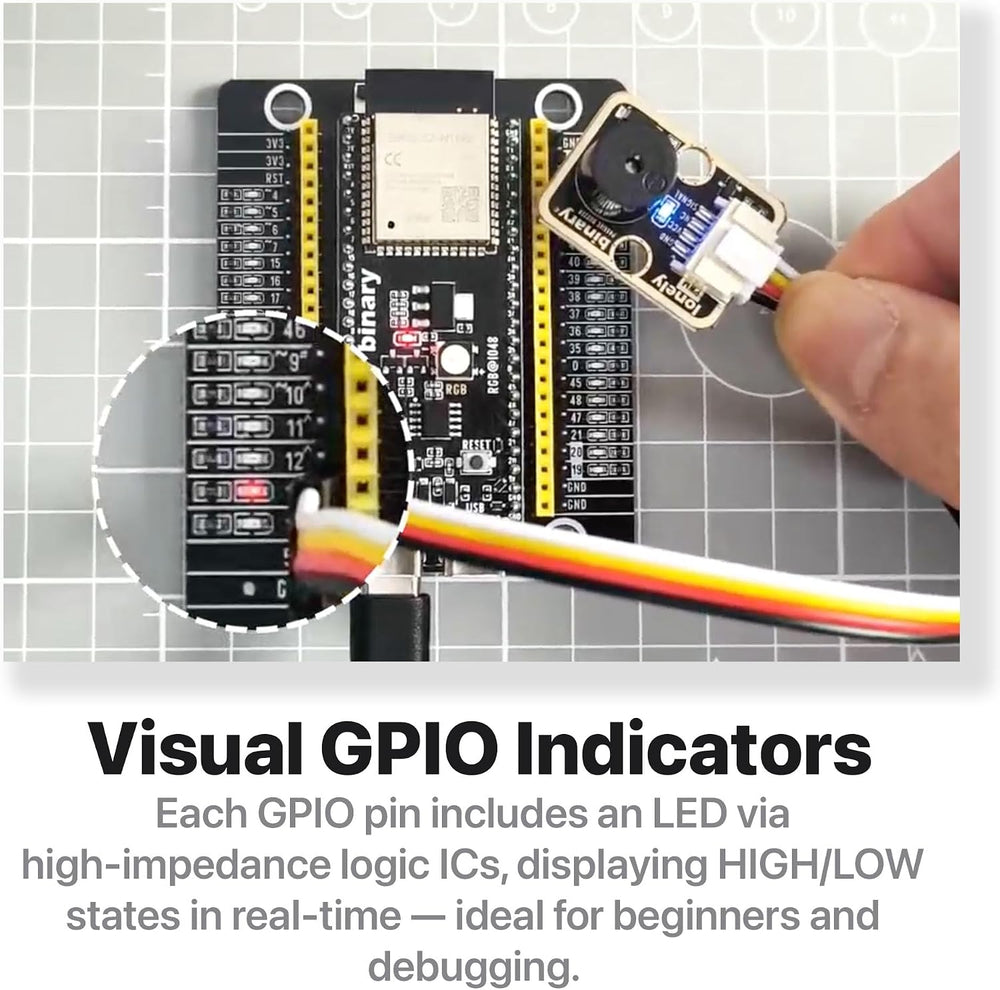

• An LED on every GPIO. 36 buffered LEDs show HIGH and LOW without disturbing SPI, I2C or UART.

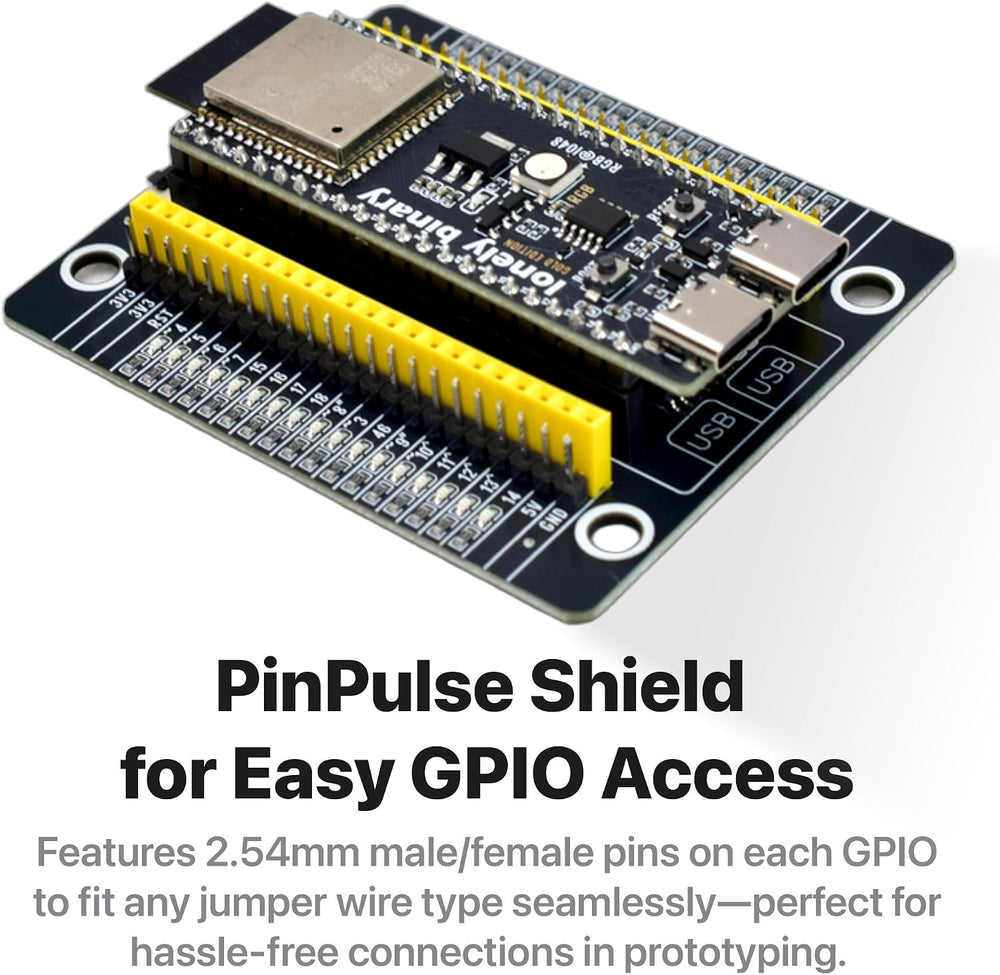

• Pins and sockets. Every GPIO is on both male pins and female sockets at 2.54 mm, so any jumper wire fits.

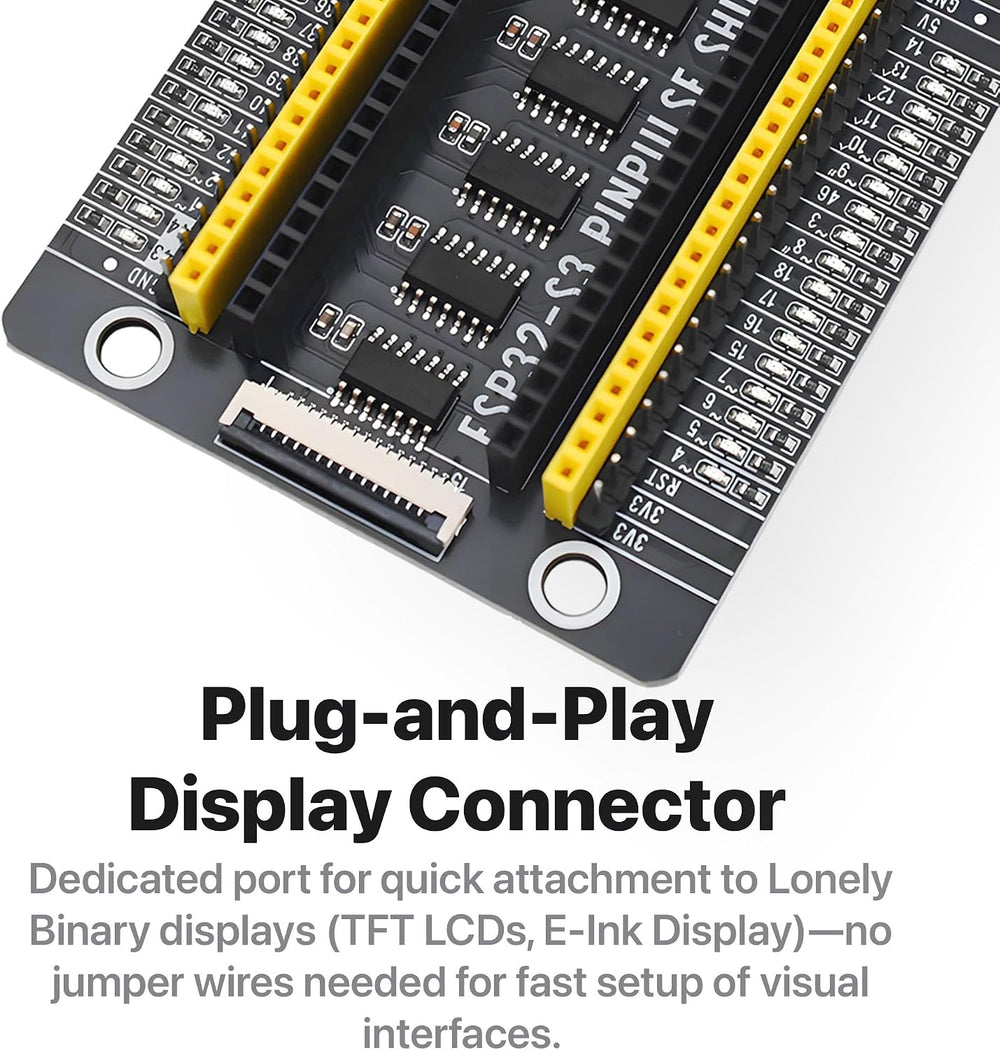

• Display port. A 15-pin FPC connector takes Lonely Binary displays on one ribbon cable (displays sold separately).
• Two USB-C ports. One for native USB, one for UART programming and debugging.

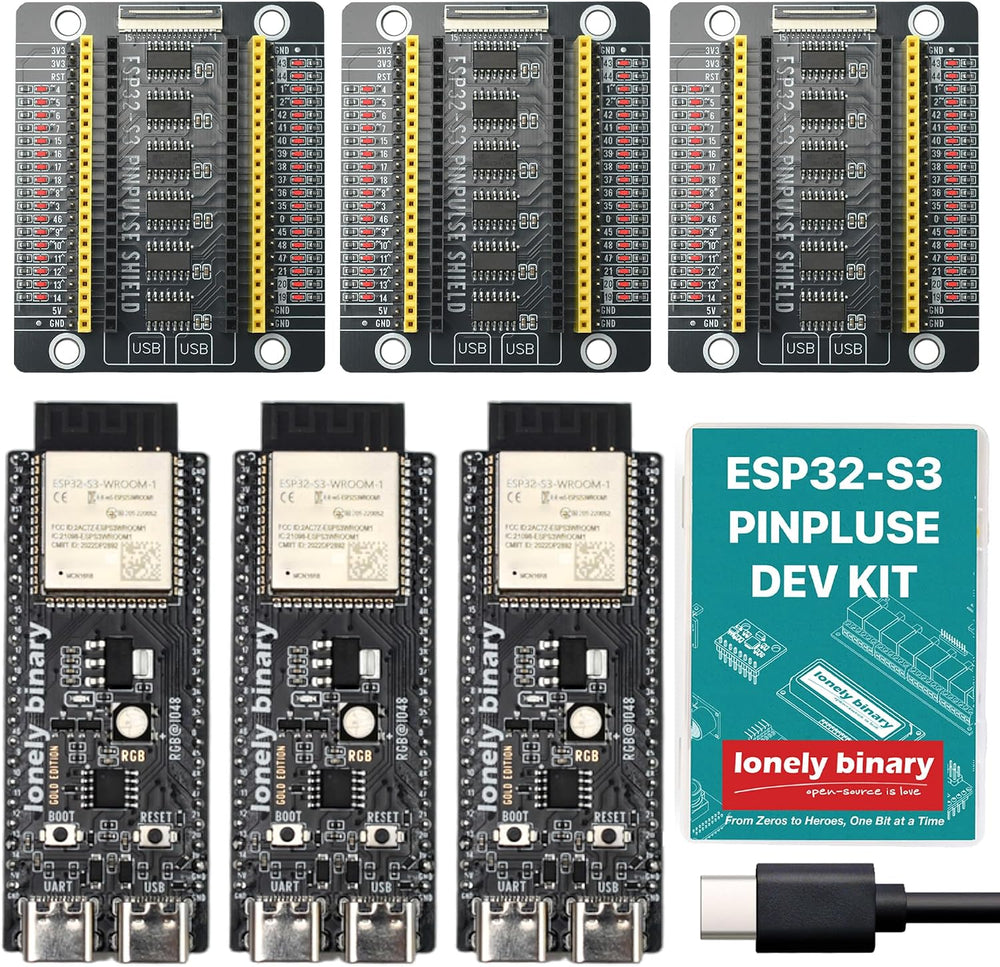

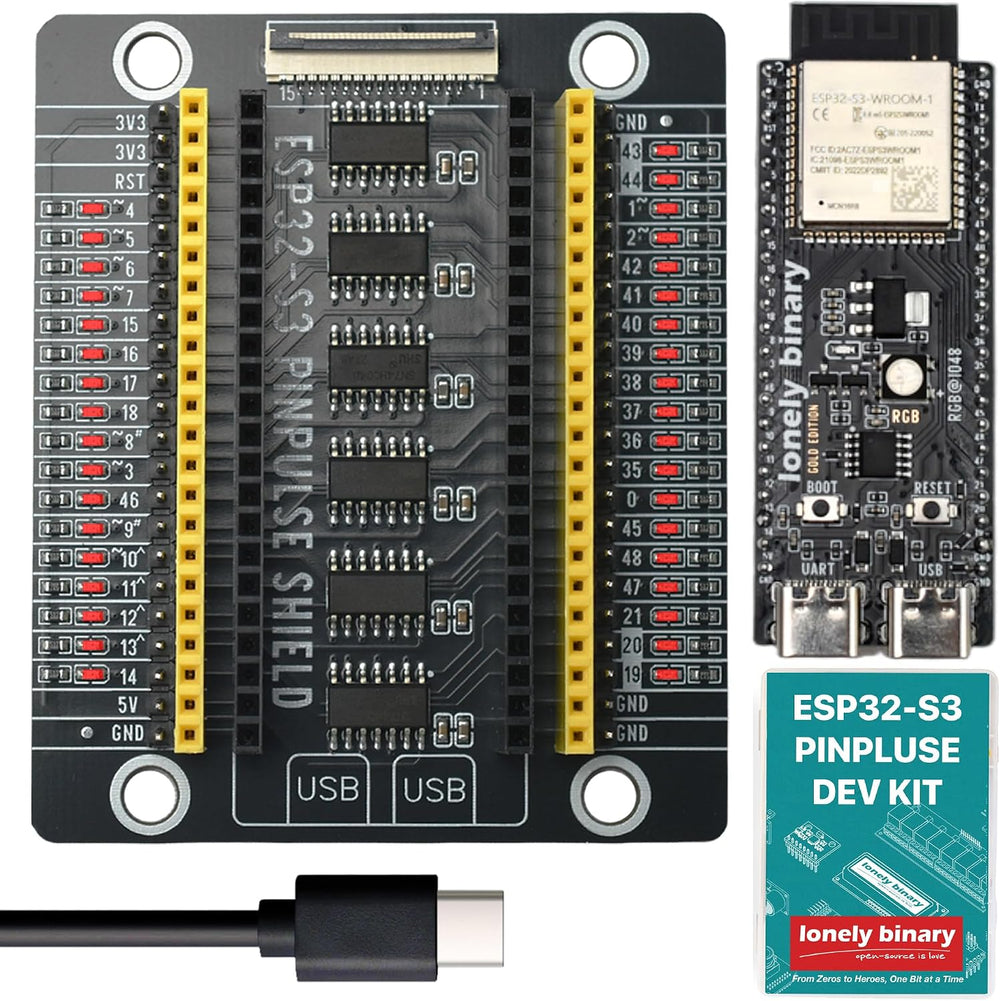

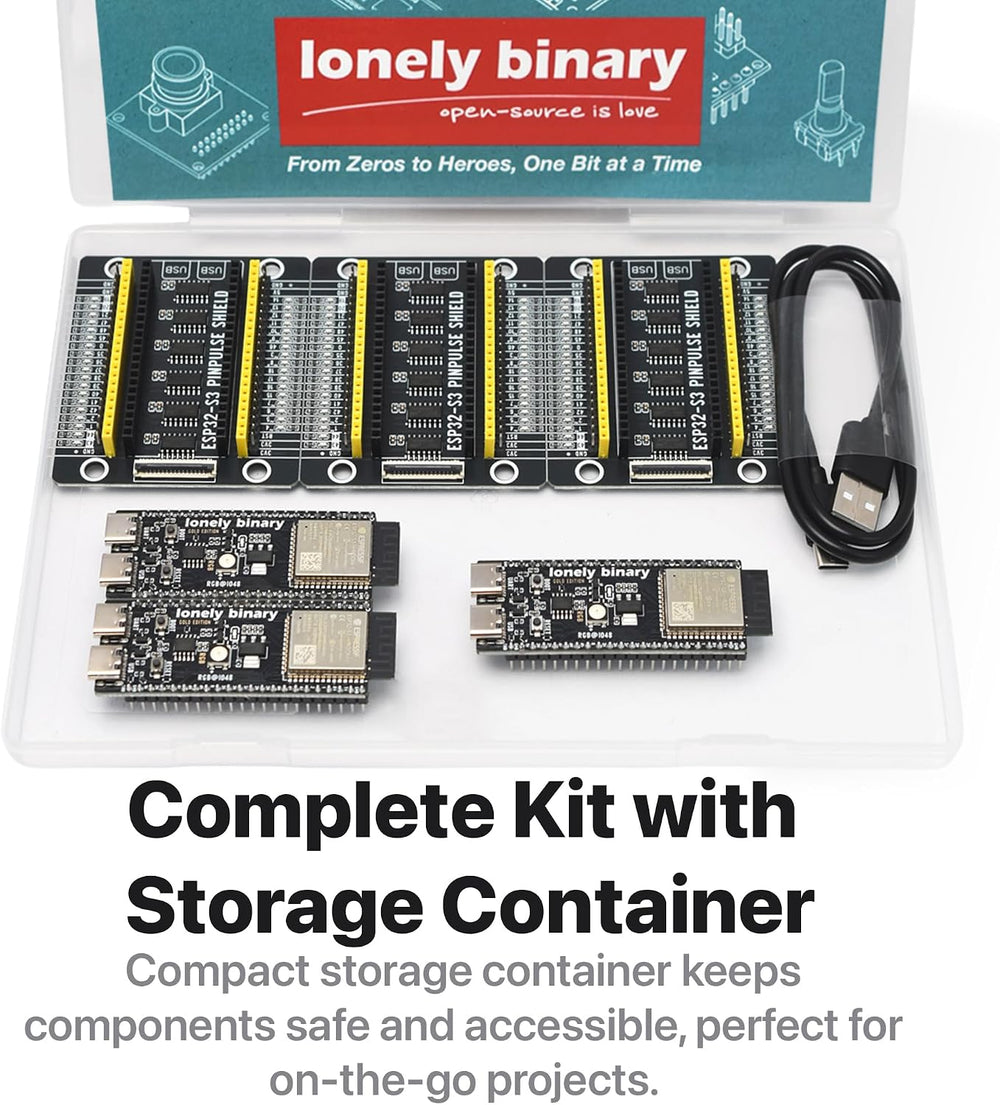

In the box

• 3 × ESP32-S3 Gold Edition board (N16R8)
• 3 × ESP32-S3 PinPulse shield
• 1 × USB-A to USB-C cable

Specifications

• Module: ESP32-S3-WROOM-1, dual-core Xtensa LX7 up to 240 MHz
• Memory: 16 MB flash, 8 MB PSRAM
• Wireless: Wi-Fi 802.11 b/g/n, Bluetooth 5 LE
• GPIO LEDs: 36, one per GPIO
• Display connector: 15-way FPC

Works with

C++, ESP-IDF, MicroPython and PlatformIO.
